high quality blow molding machine 6el wholesale for an importer

Product Detail

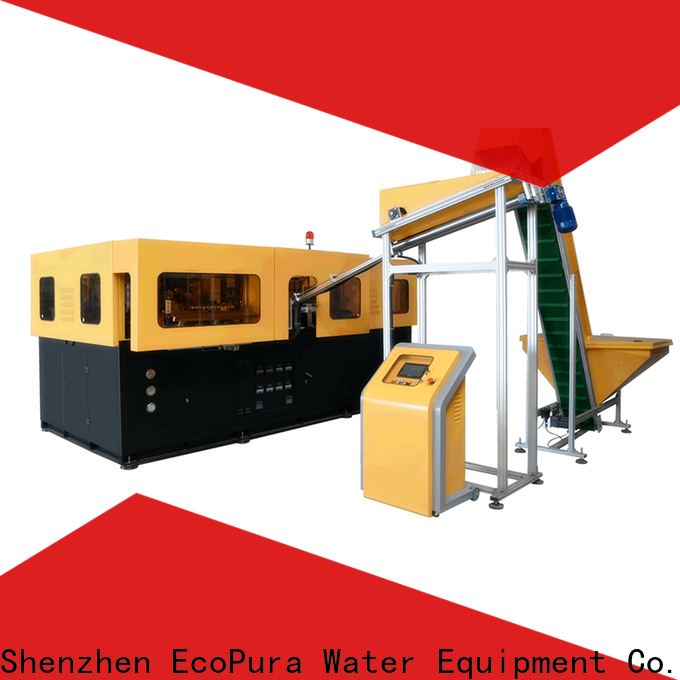

4800-7200bph 0.1L-2L Servo blow molding machine 4EL 6EL

EPC-4EL,6EL Blower mainly used for blowing Water/CSD/Juice beverage bottle, Oil bottle ,condiment bottle ,cosmetic bottle and other packaging containers

high quality blow molding machine 6el wholesale for an importer-1

high quality blow molding machine 6el wholesale for an importer-2

high quality blow molding machine 6el wholesale for an importer-3

high quality blow molding machine 6el wholesale for an importer-4

high quality blow molding machine 6el wholesale for an importer-5

high quality blow molding machine 6el wholesale for an importer-6

Product Parameter

Model	EPC-4EL	EPC-6EL
Mold Cavities	4	6
Speed	4800-5000bph	7200-7500bph
Bottle Size	Up to 2L	Up to 2L
Bottle Height	＜330 mm	＜330 mm
Bottle Neck	Φ18-Φ38 mm	Φ18-Φ38 mm
Bottle Body Diameter	Φ106 mm	Φ106 mm
Working Pressure	7-9kg/cm	7-9kg/cm2
Low Pressure Air Consumption	2000L/min	2000L/min
Blowing Air Pressure	25-35kg/cm2	25-35kg/cm2
High Pressure Air Consumption	6000L/min	8000L/min
Heating lamp	48pcs	72pcs
Installation Power	96kw	110kw
Practical Power	30-50kw	40-60kw
Machine Size	L4.5mW2.2mH2.6m	L5.8mW2.2mH2.6m
Weight	6500kgs	10000kgs

Product Advantages

♦ Servo Control all process
♦ Electrical components are World famous brand: FESTO, Schneider, Omron etc
♦ Visibility, maintainability, standardized components, Safety
♦ A Scrap rate of under 0.1%
♦ Up to 99% production efficiency
♦ Changeovers in less than 30mins
♦ Oven electrical consumption cut by up to 25%-30%
♦ Compressed air saving up to 20%-25%
