unreserved service shrink packing machine wrapper for wholesale

Product Detail

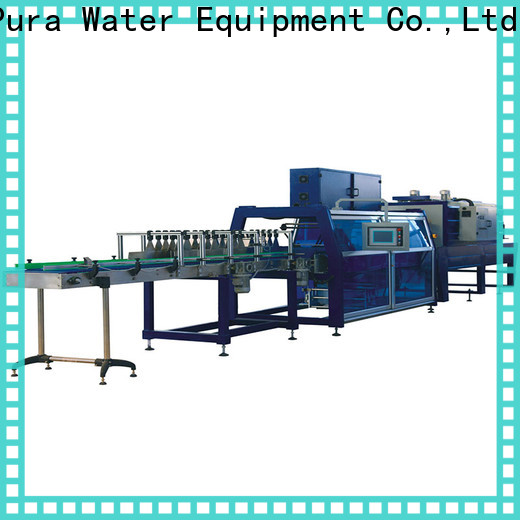

Shrinking Wrapper SWP45

The system is equipped frequency-controlled speed conveyor with bottle sorting lane, film guiding system, wrapping, shrinking tunnel, Operability thanks to a user friendly human machine interface (HMI) , 100% automated from product infeed all the way down to the tunnel outfeed is synchronized with the PLC control system.Used for Water,Juice,tea,wine, beer etc other containers post packaging.

EcoPura wrapper shrink packing machine for wholesale-1

EcoPura wrapper shrink packing machine for wholesale-2

EcoPura wrapper shrink packing machine for wholesale-3

EcoPura wrapper shrink packing machine for wholesale-4

Product Parameter

Model	SWP45
Packing Speed	40-45Pack/min
Packing Standard	23,33,34,44,45,46bottles/pack
PLC & Touch Screen	Siemens
Air Cylinder	Airtac
Sensor and relay	Omron, SMC
Assembled Size	1200015602600mm
Wrapper Part Size	320015602600mm
Shrink Tunnel Size	400013001840mm
Conveyor	48001080920mm (height adjustable)
Sealing & Cutting time	0.5-1s
Working Air pressure	0.6-0.8Mpa
Weight	5500kgs
Total Power	60kw

Features

♦ 1. Touch screen with friendly interface convenient for man-machine communication and operation
♦ 2. With automatic functions of bottles feeding and sorting, wrapping, sealing shrinking, cooling and shaping. can handle different packing combination
♦ 3. The quick seal cooling function ensure the package with a higher strength even in high speed production condition.
♦ 4. The inductive switch controls the film feeding system to reliably adjust and control film feeding length with less loss
♦ 5. Unique centrifugal thermal air circulation system that has an equal heat distribution ensuring outstanding and durable shrinkage shape.

x******c

shrink wrapper for sale has a good performance due to its materials having the merits including shrink wrapper for sale.

i******v

As one of the advanced characteristics, shrink wrapper for sale has won warm praise from customers.

b******x

Adopted from raw materials, shrink wrapper for sale is friendly in use.

n******l

Motivated by different styles of design, our designers have successfully worked out fashionable shrink packing machine.

w******f

Our shrink wrapper for sale has scientific structure and excellent design.

y******u

It has a complete life cycle and high performance.
