factory directly supply wine bottling equipment wine manufacturer for distribution

Product Detail

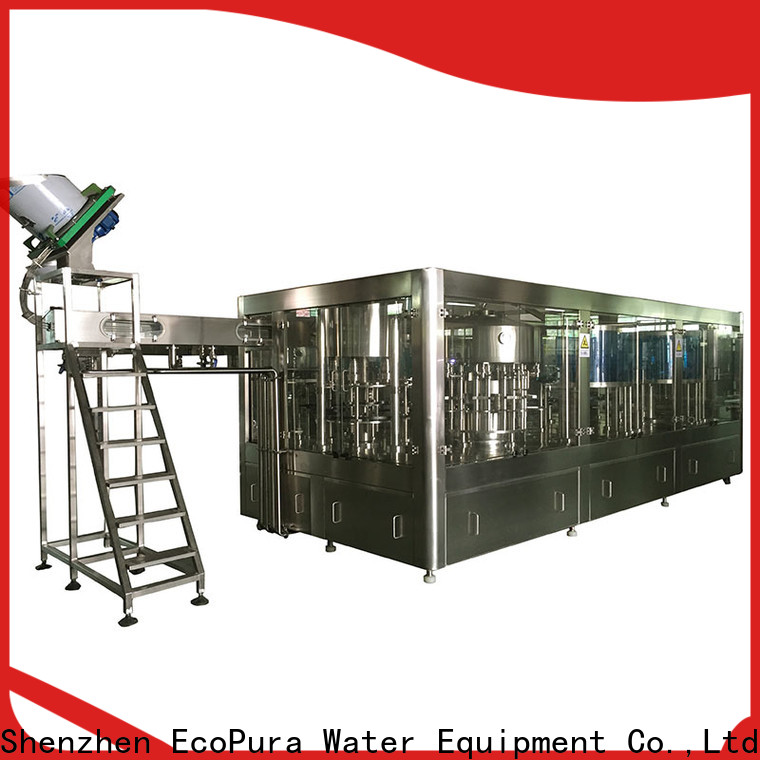

ECOPURA 3-in-1 Glass 0.3L-1.5L HSG-G series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

EcoPura wine wine bottling equipment manufacturer for distribution-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3G	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-3000bph	1.5kw	SIEMENS
HSG16-12-6G		3000-4500bph	1.8kw
HSG24-16-6G		5000-6000bph	2.2kw
HSG24-18-8G		7000-8000bph	2.2kw
HSG24-24-8G		10000-12000bph	3.0kw
HSG32-32-12G		15000-18000bph	5.5kw
HSG38-38-14G		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura wine wine bottling equipment manufacturer for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura wine wine bottling equipment manufacturer for distribution-3

EcoPura wine wine bottling equipment manufacturer for distribution-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The lift cylinder presses the bottle on to the filling valve where it is pre-evacuated several times. With non-carbonated beverages, the filling valve opens due to a movement of the control cylinder. With carbonated beverages, the bottle is pressurised and the valve opens as soon as the bottle and the ring bowl have the same pressure. At both of the filling processes, the liquid runs through a spreader along the bottle wall. The valve closes as soon as the bottle is entirely filled. The correction channel opens and the excessive fill quantity is displaced from the bottle to the end of the vent tube. With carbonated beverages, a snifting phase is performed in order to reduce the pressure in the bottle head space. Non- carbonated beverages can be removed from the filling valve right after filling is completed.

Aluminum Roll-On Capping Part

After they have been sorted according to their positions in the sorter, the caps are fed to the capper via an open chute. A towing shoe positions the caps, which are then directly picked up by the bottle. If a cap is missing, a safety plunger prevents contact between the rollers and the bottle neck finish. Depending on the cap type, a “fixed” or a deep-drawing plunger is used for press-on and shaping. The thread is rolled out via moveable arms, and if necessary, the tamper-evident band is flanged. The lateral pressure can be easily readjusted with adjusting screws.

EcoPura wine wine bottling equipment manufacturer for distribution-5

EcoPura wine wine bottling equipment manufacturer for distribution-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

j******z

The design considerations of EcoPura wine filter machine cover the following aspects: static and dynamic stiffness, operational speeds, gearboxes, manual, and automatic control. The product delivers satisfying performance in harsh conditions, be it in freezing Siberia or scorching Mid-East countries

j******o

EcoPura wine filter machine is manufactured under precision casting workmanship. It has to go through cutting machining, thermal treating, and surface treating by skillful technicians. It has survived 1.2 million times of fatigue tests

h******a

The design of EcoPura wine bottling equipment follows the following basic principles: major mechanical behavior, static and dynamic structure, safety, cycle time, etc. Manufactured with advanced production techniques imported from Germany, it is highlighted by its precision and accuracy

b******e

EcoPura wine bottling equipment is guaranteed with a high safety level. During the designing stage, various elements considering its safety are seriously considered, including electrical safety, mechanical security, and personal safety of operators. It comes as a final product of our experience accumulated for more than ten years in manufacturing trailers parts

i******n

EcoPura wine bottling equipment has gone through the following production stages. They include the approval of drawings, the fabrication of sheet metal, welding, the arrangement of wire, and dry run testing. It is broadly compatible with different types of trailers

s******c

The company actively introduces foreign advanced technology to transform and upgrade wine filter machine, strives to improve its internal performance and external quality, and ensures that the wine filter machine produced are all energy-efficient, safe and environmentally friendly products.
