unbeatable price water bottle filling machine water overseas trader for sale

Company Advantages
1. The POS interface of EcoPura fill line is designed by our professional experts who facilitate the overall aesthetic of the interface. The product is able to provide a great purifying effect
2. The product is not only good for people's health but also it's good for appliances. People using the softened water offered by the product to clean the appliances can extend their service life. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
3. The product is highly efficient. It adopts reverse osmosis pure water filtration systems technology which is the most advanced and energy-saving membrane separation technology. The product is equipped with air conveyor and frequency control

Product Detail

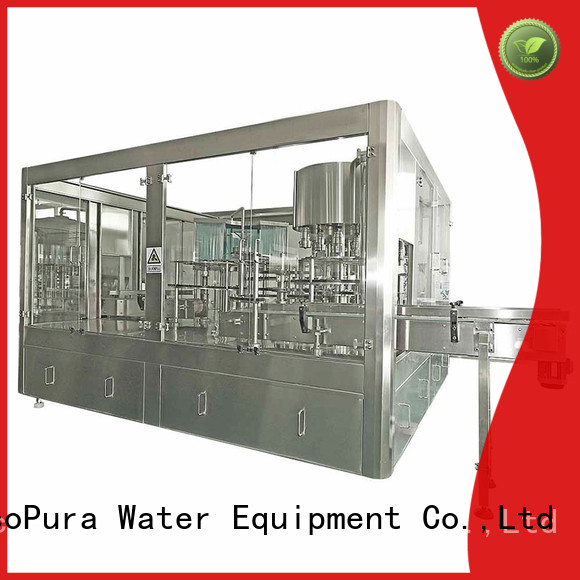

ECOPURA 4-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc

EcoPura water water bottle filling machine overseas trader for sale-1

Product Parameter

Model	Bottle Spec	Capacity Cal@5L	Power	PLC & HMI
HSG10-10-5	3L-10L	1200-1500bph	2.2kw	SIEMENS
HSG12-12-5		1500-2000bph	3.0kw
HSG14-14-5		2000-2500bph	4.0kw
HSG16-16-5		2500-3000bph	5.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura water water bottle filling machine overseas trader for sale-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura water water bottle filling machine overseas trader for sale-3

EcoPura water water bottle filling machine overseas trader for sale-4

Ozonated Water Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems ECOPURA standard Machines are suitable for CIP

EcoPura water water bottle filling machine overseas trader for sale-5

EcoPura water water bottle filling machine overseas trader for sale-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura water water bottle filling machine overseas trader for sale-7

Company Features
1. From the outset, Shenzhen EcoPura Water Equipment Co.,Ltd was an export-oriented company specialized in water bottle filling machine . For a long time, EcoPura has always attached great importance to the core value of technological power.
2. All EcoPura products are produced under the supervision of our quality control team.
3. Professional quality review strictly controls all facets of liquid filler production. Shenzhen EcoPura Water Equipment Co.,Ltd ranks the first in the mineral water filling machine field by utilizing opportunities. Get more info!
