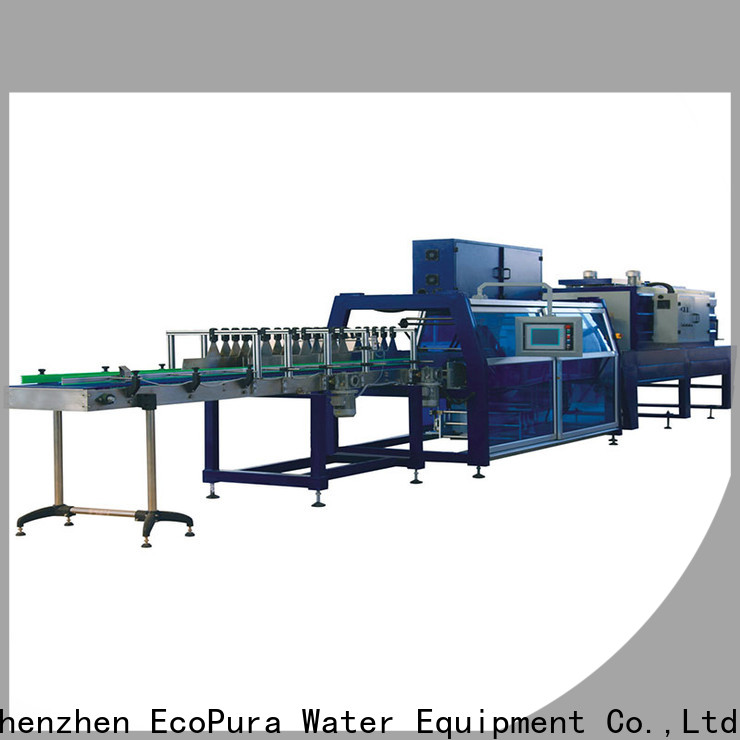

Shrinking Wrapper SWP45

The system is equipped frequency-controlled speed conveyor with bottle sorting lane, film guiding system, wrapping, shrinking tunnel, Operability thanks to a user friendly human machine interface (HMI) , 100% automated from product infeed all the way down to the tunnel outfeed is synchronized with the PLC control system.Used for Water,Juice,tea,wine, beer etc other containers post packaging.

EcoPura warpper seal packing machine for wholesale-1

EcoPura warpper seal packing machine for wholesale-2

EcoPura warpper seal packing machine for wholesale-3

EcoPura warpper seal packing machine for wholesale-4

Product Parameter

Model	SWP45
Packing Speed	40-45Pack/min
Packing Standard	23,33,34,44,45,46bottles/pack
PLC & Touch Screen	Siemens
Air Cylinder	Airtac
Sensor and relay	Omron, SMC
Assembled Size	1200015602600mm
Wrapper Part Size	320015602600mm
Shrink Tunnel Size	400013001840mm
Conveyor	48001080920mm (height adjustable)
Sealing & Cutting time	0.5-1s
Working Air pressure	0.6-0.8Mpa
Weight	5500kgs
Total Power	60kw

Features

♦ 1. Touch screen with friendly interface convenient for man-machine communication and operation
♦ 2. With automatic functions of bottles feeding and sorting, wrapping, sealing shrinking, cooling and shaping. can handle different packing combination
♦ 3. The quick seal cooling function ensure the package with a higher strength even in high speed production condition.
♦ 4. The inductive switch controls the film feeding system to reliably adjust and control film feeding length with less loss
♦ 5. Unique centrifugal thermal air circulation system that has an equal heat distribution ensuring outstanding and durable shrinkage shape.

h******y

shrink wrap machine price It is made of high-quality raw materials and refined with industry-leading manufacturing technology and craftsmanship. It is safe and environmentally friendly, non-toxic and odorless, and of high quality. It has won wide acclaim and support in the market.

p******k

seal packing machine It adopts strict processing technology and anti-leakage design, reliable quality, good sealing performance, and easy to carry when going out.

f******i

seal packing machine Selected high-quality raw materials, using the first-class manufacturing technology Seiko secret agents, high gloss, high sealing, high quality, durable.

j******d

shrink wrap machine price Reasonable design, excellent workmanship, thick texture, high quality, high gloss, good sealing, easy to carry and so on.

h******x

shrink wrap machine price The design is simple, the workmanship is excellent, the quality is stable, and the quality is reliable. It is a packaging tube product with both aesthetics and practicality.

b******q

Its quality is guaranteed to comply with the requirements of ISO 9001. Its battery can be made of lead-acid or LiFePO4 battery
