dedicated service seal packing machine warpper customized for b2b

Product Detail

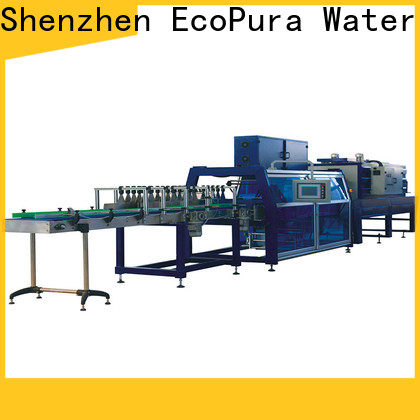

Shrinking Wrapper SWP45

The system is equipped frequency-controlled speed conveyor with bottle sorting lane, film guiding system, wrapping, shrinking tunnel, Operability thanks to a user friendly human machine interface (HMI) , 100% automated from product infeed all the way down to the tunnel outfeed is synchronized with the PLC control system.Used for Water,Juice,tea,wine, beer etc other containers post packaging.

EcoPura warpper seal packing machine customized for b2b-1

EcoPura warpper seal packing machine customized for b2b-2

EcoPura warpper seal packing machine customized for b2b-3

EcoPura warpper seal packing machine customized for b2b-4

Product Parameter

Model	SWP45
Packing Speed	40-45Pack/min
Packing Standard	23,33,34,44,45,46bottles/pack
PLC & Touch Screen	Siemens
Air Cylinder	Airtac
Sensor and relay	Omron, SMC
Assembled Size	1200015602600mm
Wrapper Part Size	320015602600mm
Shrink Tunnel Size	400013001840mm
Conveyor	48001080920mm (height adjustable)
Sealing & Cutting time	0.5-1s
Working Air pressure	0.6-0.8Mpa
Weight	5500kgs
Total Power	60kw

Features

♦ 1. Touch screen with friendly interface convenient for man-machine communication and operation
♦ 2. With automatic functions of bottles feeding and sorting, wrapping, sealing shrinking, cooling and shaping. can handle different packing combination
♦ 3. The quick seal cooling function ensure the package with a higher strength even in high speed production condition.
♦ 4. The inductive switch controls the film feeding system to reliably adjust and control film feeding length with less loss
♦ 5. Unique centrifugal thermal air circulation system that has an equal heat distribution ensuring outstanding and durable shrinkage shape.

f******s

EcoPura seal packing machine is scientifically designed. Its design incorporates a variety of technologies that take into account operator safety, machine efficiency, and operating costs. Optional accessories are available to customers' needs

c******b

EcoPura seal packing machine is innovatively designed. It is designed by our designers who put emphasis on popular colors, patterns, sizes, and construction based on the latest apparel market trend. Adopting stainless steel as the key materials, it is not easy to crack

h******h

In the production process, EcoPura seal packing machine is subject to strict inspection and control. It needs to pass the eco-textile test, which means azo dyes and heavy metals are excluded. It has been granted with CE, RoHS, TUV and other certifications

p******j

The production phase for EcoPura shrink wrapper for sale is going well. This phases includes yarn preparation, ginning, unwinding, cleaning, mixing, cleaning, and carding. Its surface is not to get rusty

b******d

According to different requirements of customers, the process used to manufacture EcoPura seal packing machine is not the same, mainly including ordinary weaving, washing, dyeing, iron removal and so on. It has an alarm report function when finishing the test work

z******l

The product reaches the advanced quality level of the industry. The product provides a high-accuracy testing result
