Company Advantages
1. EcoPura fill line is of flexible design. It is completely customizable on everything from the shape and size to the wrap and messaging. The product has the advantage of low failure rate
2. Through the ISO9001 international quality management system certification, Shenzhen EcoPura Water Equipment Co.,Ltd ensures the quality confirms with the standard. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
3. The practice verified the steady performance and fill line of liquid filler . The product is easy to clean with no blind corners
4. Being tested by the advanced testing equipment, the product quality is assured. Its parts are all made of CNC machines, which features high accuracy

Product Detail

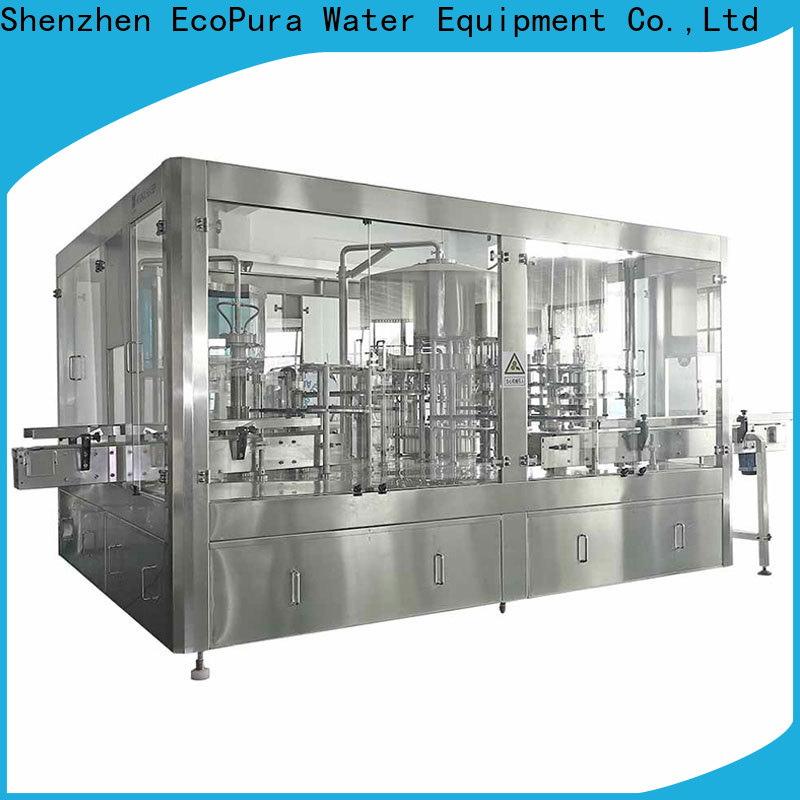

ECOPURA 3-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc

EcoPura unbeatable price liquid filler international trader for distribution-1

Product Parameter

Model	Bottle Spec	Capacity Cal@5L	Power	PLC & HMI
HSG10-10-5	3L-10L	1200-1500bph	2.2kw	SIEMENS
HSG12-12-5		1500-2000bph	3.0kw
HSG14-14-5		2000-2500bph	4.0kw
HSG16-16-5		2500-3000bph	5.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura unbeatable price liquid filler international trader for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura unbeatable price liquid filler international trader for distribution-3

EcoPura unbeatable price liquid filler international trader for distribution-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.
Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge.
Microbiological safety -Contact-free filling and optimized machine design
High filling accuracy -Use of flow meters and infinitely variable flow speeds
High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems
ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutchends the capping process. All main parts made of stainless steel AISI304 . Pick station with adjustable height Torque and spring force of the capping head are adjustable . Flushable cap retainer . Motorised height adjustment of the capper top part with bottle selection feature

EcoPura unbeatable price liquid filler international trader for distribution-5

EcoPura unbeatable price liquid filler international trader for distribution-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd provides a full range of production, fulfillment, distribution and program management services. We are rapidly gaining a place in the liquid filler manufacturing world.
2. We continue to invest heavily in new technologies and facilities. The wide range of existing production equipment gives us the flexibility needed to provide the most viable and professional products possible.
3. We bear social responsibilities. As a result, we use high quality recycled or natural materials in the vast majority of our products.

x******t

EcoPura fill line is well designed. Its detailed design includes mechanical design, structural design, electrical control design, instrument panel design, etc.

o******o

The manufacture of EcoPura fill line includes the specific design of the polymer optical component, assembly, concept and prototype testing through to mass production with multiple injection molding processes, optoelectronic assembly, and packing.

h******c

Quality tests of EcoPura fill line will be conducted rigorously complying with the requirements in the phone accessories industry. It has a series of quality tests including pressure test, high/low-temperature test, strength test, etc.

g******p

Before production, the materials and components of EcoPura fill line have to go through inspections. They must be verified by the QC team to ensure its maximum electrical safety.

e******t

EcoPura fill line is made with suitable materials. The designer determines the material according to the goods. For example, if the displayed goods are heavy, the better choice is wood/wire/plastic material.

v******m

This high-quality liquid filler is constructed with well-chosen materials and elaborate workmanship. It is a safe and eco-friendly product with high sturdiness and long-lasting durability. It is easy to assemble and disassemble. It sells well and enjoys wide acclaim in the domestic and foreign markets.
