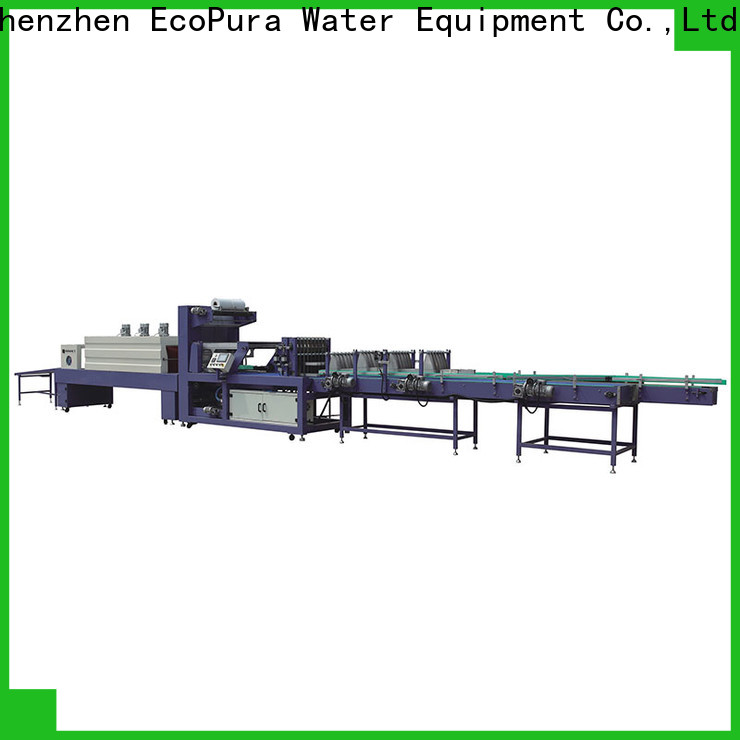

Shrinking Wrapper SWP20

The system is equipped frequency-controlled speed conveyor with bottle sorting lane, film guiding system, wrapping, shrinking tunnel, Operability thanks to a user friendly human machine interface (HMI) , 100% automated from product infeed all the way down to the tunnel outfeed is synchronized with the PLC control system.Used for Water,Juice,tea,wine, beer etc other containers post packaging.

EcoPura swp20 seal packing machine customized for industrial production-1

EcoPura swp20 seal packing machine customized for industrial production-2

EcoPura swp20 seal packing machine customized for industrial production-3

EcoPura swp20 seal packing machine customized for industrial production-4

Product Parameter

Model	SWP20
Packing Speed	18-20Pack/min
Packing Standard	23,33,34,44,45,46bottles/pack
PLC & Touch Screen	Siemens
Air Cylinder	Airtac
Sensor and relay	Omron, SMC
Assembled Size	1200010002100mm
Wrapper Part Size	320011002100mm
Shrink Tunnel Size	400010001840mm
Conveyor	48001080920mm (height adjustable)
Sealing & Cutting time	0.5-1s
Working Air pressure	0.6-0.8Mpa
Weight	2500kgs
Total Power	30kw

Features

♦ 1. Touch screen with friendly interface convenient for man-machine communication and operation
♦ 2. With automatic functions of bottles feeding and sorting, wrapping, sealing shrinking, cooling and shaping. can handle different packing combination
♦ 3. The quick seal cooling function ensure the package with a higher strength even in high speed production condition.
♦ 4. The inductive switch controls the film feeding system to reliably adjust and control film feeding length with less loss
♦ 5. Unique centrifugal thermal air circulation system that has an equal heat distribution ensuring outstanding and durable shrinkage shape.
