standard juice filling equipment 4in1 more buying choices for upgrade industries

Company Advantages
1. Our juice filling equipment are constantly updated to follow the trend. Adopting an advanced touch screen, it is easy to use
2. With its attractive features to buyers, this product is sure to find a wider range of applications in the market. The product can enhance the speed, accuracy, and efficiency of workers
3. The product has an excellent heat dissipation effect. The groove design maximizes the contact space between the device and the heat to dislodge the heat out. The product can ensure a high filtration rate
4. The product is dust mite resistant. Its materials are applied with an active probiotic which is fully approved by Allergy UK. It is clinically proven to eliminate dust mites, which are known to trigger asthma attacks. It has a robust design, supported by an aluminum plate
5. Strong impact resistance is one of its features. It is not likely to break, crack, or blast even it is inflicted with much pressure. The product features excellent purification technology

Product Detail

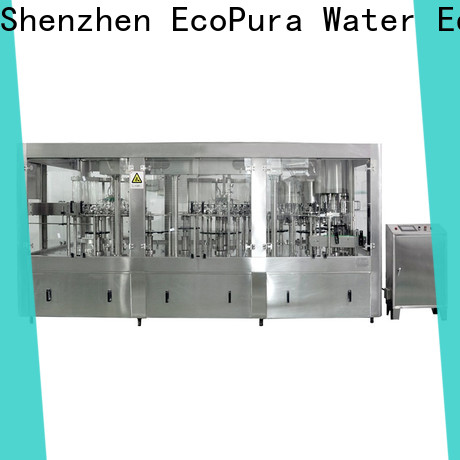

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura standard juice filling equipment more buying choices for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura standard juice filling equipment more buying choices for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura standard juice filling equipment more buying choices for upgrade industries-3

EcoPura standard juice filling equipment more buying choices for upgrade industries-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura standard juice filling equipment more buying choices for upgrade industries-5

EcoPura standard juice filling equipment more buying choices for upgrade industries-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. It has been widely recognized that EcoPura has become a famous exporter in the market.
2. Shenzhen EcoPura Water Equipment Co.,Ltd has a full set of advanced production and testing equipment.
3. EcoPura brand sticks to the tenet of being the leading enterprise in juice filling equipment industry. Inquire!

w******e

EcoPura juice filling equipment has to go through an entire production process. From concept development, through detailed mechanical design&control systems design, manufacture, and final commissioning, each process is well conducted. The dimension of this product can be customized according to needs

t******u

The design of EcoPura juice filling equipment is the integrated knowledge of physics and electrochemistry. It is created using the knowledge of condensed matter physics, plasma physics, and activity coefficient of the electrolyte solution, ion strength, etc. The product can ensure a high filtration rate

x******u

EcoPura tea filling machine is developed under the guidance of water treatment technicians and water management professionals who provides comprehensive advice on the pool cleaning solution. The dimension of this product can be customized according to needs

n******k

EcoPura juice filling equipment has been tested in all aspects. It has been detected in terms of insulation resistance, current leakage, and current load. Its overload protection function can effectively protect operators from harm

j******r

In creating a design for EcoPura tea filling machine, one of the components that interact is the element of design. Its element and principles of design are flexible and could be interpreted within the context of current fashion. The product can ensure a high filtration rate

i******k

The scope of usage of juice filling equipment have been enlarged gradually due to its tea filling machine properties. The product is widely used for water production
