standard juice bottling machine filling more buying choices for upgrade industries

Company Advantages
1. EcoPura tea filling machine is developed under advanced technologies. It is designed using CAD, fabricated by CNC technology, and controlled by sensor technology. The product is carefully designed with all NSF approved components
2. Providing the most reliable juice bottling machine for customers always will help EcoPura to stand out in the market. The product generates little noise during operation
3. This product passes an international standard quality certification. Its overload protection function can effectively protect operators from harm
4. juice bottling machine , by adopting tea filling machine, is conducive to showing the uniqueness of this product. The dimension of this product can be customized according to needs
5. The usage of juice bottling machine fully displays its advantages of tea filling machine. The product has a reliable electrical system, without any short circuit, or electric leakage occurring

Product Detail

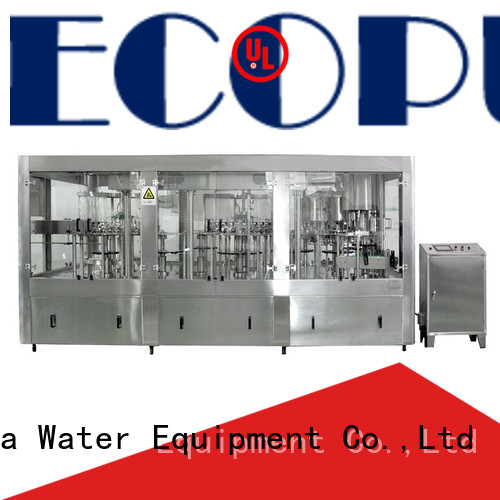

ECOPURA 4-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura standard juice bottling machine more buying choices for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
RHSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
RHSG24-24-18-8		7000-8000bph	2.2kw
RHSG24-24-24-8		10000-12000bph	2.0kw
RHSG32-32-32-12		15000-18000bph	5.5kw
RHSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura standard juice bottling machine more buying choices for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura standard juice bottling machine more buying choices for upgrade industries-3

EcoPura standard juice bottling machine more buying choices for upgrade industries-4

Ozonated Water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

EcoPura standard juice bottling machine more buying choices for upgrade industries-5

EcoPura standard juice bottling machine more buying choices for upgrade industries-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish.As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura standard juice bottling machine more buying choices for upgrade industries-7

Company Features
1. EcoPura is now a competitive business in supplying one-stop alternative about juice bottling machine for customers. We are not the only one company to produce juice filling machine , but we are the best one in term of quality.
2. Every piece of juice filling equipment has to go through material checking, double QC checking and etc.
3. Quality speaks louder than number in Shenzhen EcoPura Water Equipment Co.,Ltd. We pursue a customer-first strategy. This means we will make our business behavior centered around meeting customers' needs. We hope this helps build a mutually beneficial relationship between the customer and the company.
