standard drink filling machine filling wholesale for sale

Company Advantages
1. EcoPura beverage filling machine is constructed from superior materials with modern technology. The product is equipped with a high-efficiency operation system
2. This product is used by more and more people and has broad application prospects. The product generates little noise during operation
3. The product features user-friendliness. It has the desired functions that are developed based on the actual needs to support different kinds of operations. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
4. It is extremely chemically resistant. The surface is treated with a protective chemical coating or protective paint to prevent dusts from entering. It has a robust design, supported by an aluminum plate
5. The product has the desired durability. Its robust structure, mainly constructed of heavy-duty metals, can withstand numerous times of abuse. The product is carefully designed with all NSF approved components

Product Detail

ECOPURA 3-in-1 PET 0.3L-1.5L DHSG-series monobloc equipped with isobaric filler nozzles designated for filling carbonated beverages such as Cola, beer, carbonated water and other liquids etc

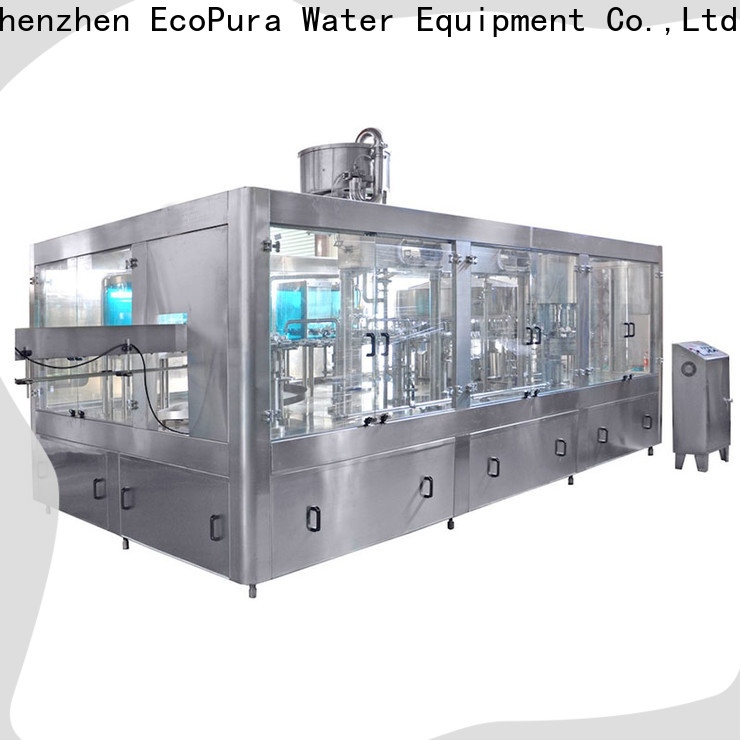

EcoPura standard drink filling machine wholesale for sale-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-16-6		4000-5000bph	2.2kw
DHSG24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-12		10000-12000bph	5.5kw
DHSG38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura standard drink filling machine wholesale for sale-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316. hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura standard drink filling machine wholesale for sale-3

EcoPura standard drink filling machine wholesale for sale-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.The PET container is first pressed on by the PET lifting unit and pressurised afterwards. Once the same pressure is in the ring bowl and the PET container, the filling valve will be opened and the filling process starts. The liquid is gently fed via a swirl insert into the bottle. Two different filling speeds guarantee optimum flow behaviour. A flow meter monitors the fed liquid quantity. Once the exact filling volume has been reached, the flow meter provides a signal and the valve closes electro pneumatically Maximum flexibility − Filling of non-carbonated and carbonated products on one system Maximum filling accuracy − Precise determination of fill quantity via inductive flow meter Gentle product treatment during filling − Low-foam and low-turbulence filling vias wirl insert in the valve Hygiene and stable filling processes − Separate gas channels for pressurization and snifting ECOPURA filling machines in their standard version are suitable for CIP and beverage mixer

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura standard drink filling machine wholesale for sale-5

EcoPura standard drink filling machine wholesale for sale-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. After years of involvement in the beverage filling machine industry, Shenzhen EcoPura Water Equipment Co.,Ltd has been highly recognized by the industry.
2. First-class production technology is acquired by Shenzhen EcoPura Water Equipment Co.,Ltd.
3. We give our customers a better understanding and confidence in their drink filling machine related projects. Ask online!

m******h

EcoPura drink filling machine is finely processed by using well-selected materials and the advanced production techniques.

q******r

EcoPura beverage filling machine is exquisitely designed from a group of innovative designers.

p******l

By using the finest materials, advanced production method, the workmanship of EcoPura beverage filling machine is at a cutting-edge of the industry.

u******o

EcoPura drink filling machine has a user-friendly design featuring both functionality and aesthetics.

r******e

EcoPura drink filling machine is strictly manufactured in line with the production procedure.

g******j

beverage filling machine Exquisite material selection, excellent workmanship, stable structure, safe use, strong and durable, has the advantages of anti-wear and pressure resistance, corrosion resistance, strong bearing capacity, etc., and is not easy to be damaged or deformed even if it is used for a long time.
