standard csd filling machine csd wholesale for importer

Company Advantages
1. The design of EcoPura bottle filling machine manufacturers is sophisticated. It involves the application of such subjects as thermodynamics, electrical theory, hydraulics, engines, and pumps. The use of this product helps in increasing the production of drinks
2. Shenzhen EcoPura Water Equipment Co.,Ltd can make sure that all csd filling machine finished in advance can be stored in our warehouse for good condition. The product is hygiene with no bacteria or mold built up
3. The product features stability in a high vibration environment. All its electrical parts are highly integrated, which makes it not easily be affected by the high vibration environment. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
4. The product does not accumulate dust. All of its internal electric components are finely sealed to prevent the dust and moisture from entering into it. Adopting an intelligent circuit design, the product has a self-check function
5. This product features remarkable wear resistance. The coefficient of friction between the stationary and rotating rings is small due to the small designed friction contact area. The product features excellent torque accuracy

Product Detail

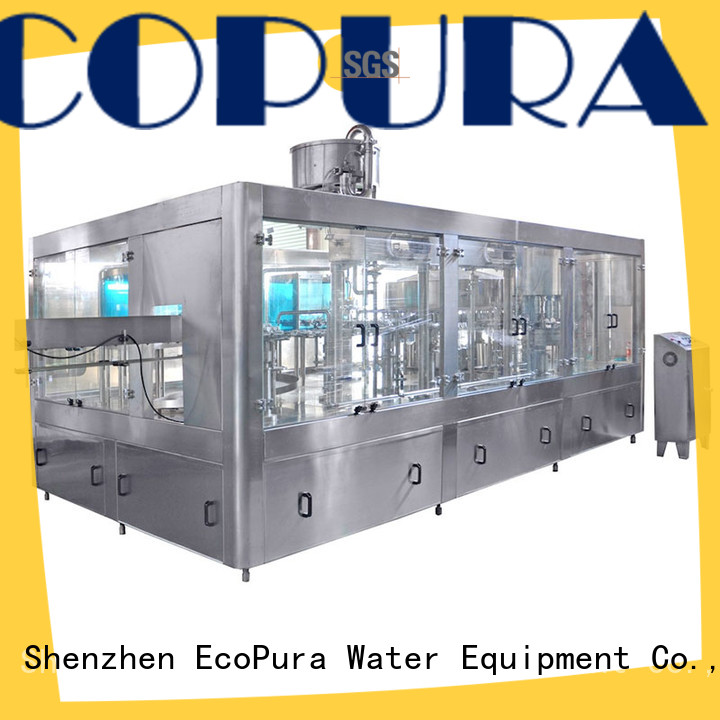

ECOPURA 4-in-1 PET 0.3L-1.5L DHSG-series monobloc equipped with isobaric filler nozzles designated for filling carbonated beverages such as Cola, beer, carbonated water and other liquids etc

EcoPura standard csd filling machine wholesale for importer-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura standard csd filling machine wholesale for importer-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316 Contactless filling SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura standard csd filling machine wholesale for importer-3

EcoPura standard csd filling machine wholesale for importer-4

Ozonated water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The PET container is first pressed on by the PET lifting unit and pressurised afterwards. Once the same pressure is in the ring bowl and the PET container, the filling valve will be opened and the filling process starts. The liquid is gently fed via a swirl insert into the bottle. Two different filling speeds guarantee optimum flow behaviour. A flow meter monitors the fed liquid quantity. Once the exact filling volume has been reached, the flow meter provides a signal and the valve closes electro pneumatically Maximum flexibility − Filling of non-carbonated and carbonated products on one system Maximum filling accuracy − Precise determination of fill quantity via inductive flow meter Gentle product treatment during filling − Low-foam and low-turbulence filling vias wirl insert in the valve Hygiene and stable filling processes − Separate gas channels for pressurization and snifting ECOPURA filling machines in their standard version are suitable for CIP and beverage mixer

EcoPura standard csd filling machine wholesale for importer-5

EcoPura standard csd filling machine wholesale for importer-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura standard csd filling machine wholesale for importer-7
