Company Advantages
1. bottle labeler for sale 's structure is really eye-catching. The product is widely used for water production
2. Shenzhen EcoPura Water Equipment Co.,Ltd has accumulated abundant capital and a number of customers and a steady business platform. The product is able to provide a great purifying effect
3. The product is known for its durability. It has been tested under circumstances such as extreme temperatures, contamination, excessive pressures, flow, speeds, and load. The operation of this product is controlled by microcomputer
4. The product features position precision. It is designed with automatic control function which can achieve high precision positioning control and self-adaptation control. The product is hygiene with no bacteria or mold built up
5. This product has the precision required. In the course of operation, we always maintain high-quality operation without error. The product has the advantage of low failure rate

Product Detail

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

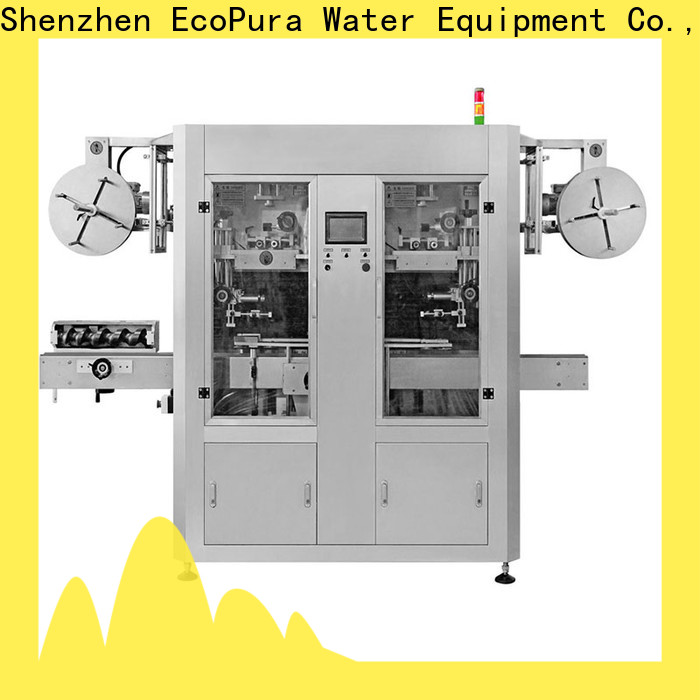

EcoPura sleeve bottle labeler for sale international market for sale-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has developed a sound management system.
2. We hold the belief that through persistent efforts, EcoPura will thrive in bottle labeler for sale industry. Check it!

h******i

Shenzhen EcoPura Water Equipment Co.,Ltd Through strict selection and supervision of raw material supply channels, the source is well controlled, and then auto label machine is produced and processed relying on its own advanced equipment, mature technology and technology, and strict procedures and processes are carried out for each step Control, control the core of production, and finally conduct a detailed inspection of each finished product in accordance with the relevant international quality standard system to ensure that every product produced is a top-quality product with excellent quality .

f******f

We have a professional, dedicated and dedicated management team and a group of experienced production personnel. The team members work hard, insist on adopting advanced design concepts and using unique production technology to manufacture auto label machine, which makes auto label machine not only reasonable in structure, but also And the quality is stable.

b******e

We insist on using advanced concepts and exquisite craftsmanship to process auto label machine, so that auto label machine not only has a reasonable structure, but also has excellent performance, both aesthetics and practicality, high quality, and can meet customers' high requirements demand for quality products.

a******h

Shenzhen EcoPura Water Equipment Co.,Ltd There are modern workshops, standardized production workshops, automated production equipment, strict quality inspection system, etc., which can ensure that all auto label machine produced by our company are of qualified and high quality.

a******c

After years of industry exploration, Shenzhen EcoPura Water Equipment Co.,Ltd has not only accumulated rich production experience, but also mastered advanced production technology, which can realize auto label machine good and fast production, and all auto label machine have undergone strict quality inspections and meet national standards Quality inspection standards, quality is trustworthy.

l******s

The product features vibration resistance. By reducing the amplitude and frequency of the vibrational waves, it outwardly disperses the energy caused by vibrations.
