factory directly supply bottle labeler machine shrink overseas market for commerce

Product Detail

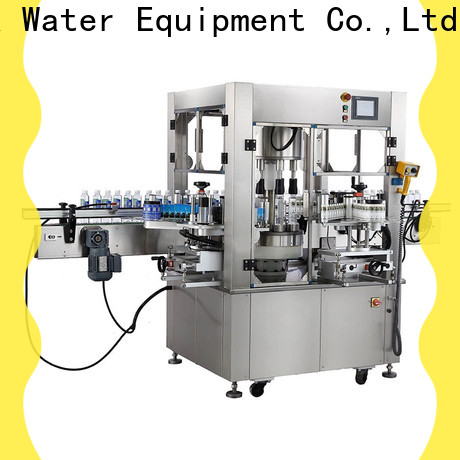

Self-Adhesive Labeller

Self-adhesive labels are a winning product thanks to their adaptability and advantageous features – they are sturdy, elastic, and water and slip- resistant. In many sectors, they are the product of choice for high-quality and long-lasting container marking. SAL applies self-adhesive labels to containers with constantly high precision, even where the situation calls for very high rates of output. At the same time, the machine is designed so flexibly that it can be adjusted to a wide range of container sizes and shapes.

EcoPura shrink bottle labeler machine overseas market for commerce-1

Method of operation

The label applicator for self-adhesive labels conveys the label carrier film to the container via tension and feed rollers. A pneumatic loop buffer system at the infeed ensures continuous unwinding of the label carrier film from the reel. The label is removed at the application wedge, and precisely transferred to the container. The label position can be corrected using a digitally adjustable starting position. In the machine carousel the self-adhesive label is pressed to the container, fixing it in place.

Application

Labelling of glass, plastic, metal and ceramic containers with self-adhesive labels

Product Parameter

Model	EcoSAL85	EcoSAL250	EcoSAL300	EcoSAL600
HMI	SIEMENS	SIEMENS	SIEMENS	SIEMENS
Capacity	85b/min	250b/min	300b/min	600b/min
Label Height	200mm	120mm	120mm	120mm
Bottle Diameter	90-240mm	30-90mm	30-90mm	30-90mm
Bottle Height	120-450mm	120-320mm	120-320mm	120-320mm
Power	10kw	5kw	6kw	10kw

e******y

During the developing stage of EcoPura bottle labeler machine, air velocity, choice of material, protrusion, and surface treatment have been seriously considered by the R&D department who strives to achieve optimized thermal dissipation effect. It is controllable and adjustable to meet different needs

s******k

Advanced inspection measures are used in the production of EcoPura auto label machine, such as coordinate measuring machine, gauges, roughness tester, and hardness tester. The product is marketed with an independent intellectual property right

b******h

The quality control of EcoPura bottle labeler machine is conducted rigorously. It is tested in terms of its air circulation, surface treatment, as well as the most important part, thermal dissipation performance. It is quality controlled according to the ISO standard

c******h

EcoPura bottle labeler machine has to go through a secondary surface operation process which mainly includes finish plating, anodizing, powder coating, and heat treatment. It is quality controlled according to the ISO standard

f******s

In the designing stage of EcoPura bottle labeler machine, thermodynamics and the law of heat conduction theories are taken into consideration by the designers. It is controllable and adjustable to meet different needs

a******z

The product is characterized by high performance and stable quality. It has been patented so as to protect the innovation
