standard blow moulding process servo wholesale for an importer

Product Detail

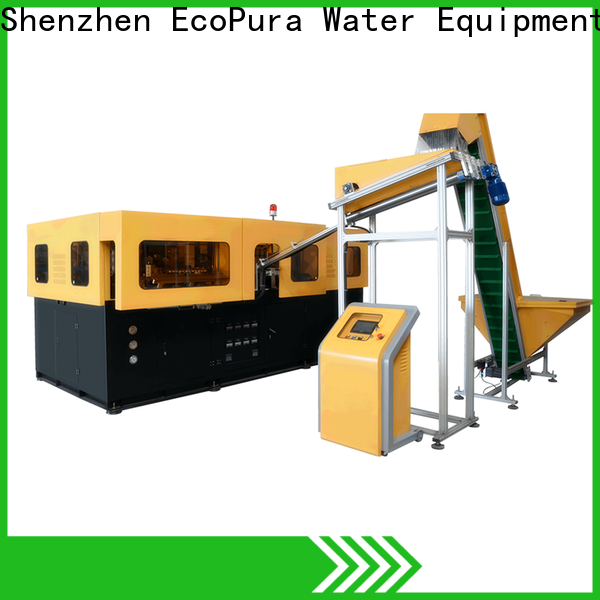

4800-7200bph 0.1L-2L Servo blow molding machine 4EL 6EL

EPC-4EL,6EL Blower mainly used for blowing Water/CSD/Juice beverage bottle, Oil bottle ,condiment bottle ,cosmetic bottle and other packaging containers

EcoPura servo blow moulding process wholesale for an importer-1

EcoPura servo blow moulding process wholesale for an importer-2

EcoPura servo blow moulding process wholesale for an importer-3

EcoPura servo blow moulding process wholesale for an importer-4

EcoPura servo blow moulding process wholesale for an importer-5

EcoPura servo blow moulding process wholesale for an importer-6

Product Parameter

Model	EPC-4EL	EPC-6EL
Mold Cavities	4	6
Speed	4800-5000bph	7200-7500bph
Bottle Size	Up to 2L	Up to 2L
Bottle Height	＜330 mm	＜330 mm
Bottle Neck	Φ18-Φ38 mm	Φ18-Φ38 mm
Bottle Body Diameter	Φ106 mm	Φ106 mm
Working Pressure	7-9kg/cm	7-9kg/cm2
Low Pressure Air Consumption	2000L/min	2000L/min
Blowing Air Pressure	25-35kg/cm2	25-35kg/cm2
High Pressure Air Consumption	6000L/min	8000L/min
Heating lamp	48pcs	72pcs
Installation Power	96kw	110kw
Practical Power	30-50kw	40-60kw
Machine Size	L4.5mW2.2mH2.6m	L5.8mW2.2mH2.6m
Weight	6500kgs	10000kgs

Product Advantages

♦ Servo Control all process
♦ Electrical components are World famous brand: FESTO, Schneider, Omron etc
♦ Visibility, maintainability, standardized components, Safety
♦ A Scrap rate of under 0.1%
♦ Up to 99% production efficiency
♦ Changeovers in less than 30mins
♦ Oven electrical consumption cut by up to 25%-30%
♦ Compressed air saving up to 20%-25%

h******i

EcoPura blow moulding process is manufactured using a variety of high technologies. They are mainly sensing technology, control system, detection system, and servo drive technology. The product is widely applied in the gas and petroleum industry

l******c

The quality of EcoPura blow moulding process is guaranteed by the workmanship assessment. It will be evaluated in terms of its electromotive force, capacity, specific energy, and resistance. This product has a compact and robust design

g******h

EcoPura blow moulding process has been tested. It has achieved a BS 5234-2: 1992 severe duty rating which is conducted by an accredited laboratory. Its output pressure can be easily adjustable

b******h

EcoPura bottle making machine meets the industry safety standards for electrical devices. It has been tested to prove that its electromagnetic disturbance level, electrostatic discharge, and electric leakage control are within the stipulated limit. Its output pressure can be easily adjustable

o******e

The design of EcoPura bottle making machine resorts to advanced technologies. It is created using CAD and CAM which lay a solid foundation for the optimized design. Its output pressure can be easily adjustable

h******p

The product, meeting with the strict quality standards, has a long service life. It helps save costs and prevent contamination
