Seawater Reverse Osmosis Systems SWRO

From water-makers to industrial sized Seawater Purification, we offer a full range of systems. Our units are manufactured to eliminate a large amount of salts and other minerals from seawater using RO. Our equipment does the filtration by employing a high-pressure pump to salty water forcing it through semi-porous membranes denying salts and other organics from flowing through. The membranes are only tasked to remove dissolved solids while dividing the feed water into purified water and rejected concentrated salts. The salts and other organics are thrown into the brine stream then flushed into a drain. At the end we have purified water that has 99% less dissolved salts. These sea water RO systems have the power to purify extremely high TDS water. Seawater RO systems are usable anywhere from yachts to municipalities.

EcoPura premium quality water treatment process wholesaler trader for water treatment-1

EcoPura premium quality water treatment process wholesaler trader for water treatment-2

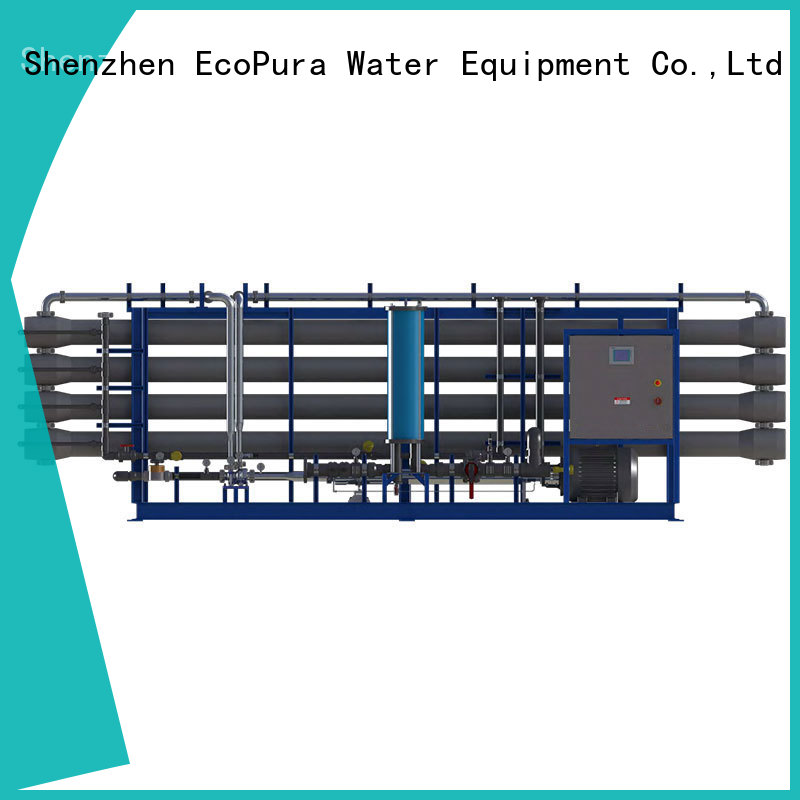

Industrial Seawater Reverse Osmosis desalination system

For continuous or heavy-duty service in marine applications on and off shore, ECOPURA manufactures a full line of designed seawater desalination systems

Seawater Reverse Osmosis

Seawater Reverse Osmosis (SWRO) is a reverse osmosis desalination membrane
process with typical single pass SWRO system consists of the following components:
Intake: well or open water
Pre-treatment: Filtration and chemical dosing
High-pressure pump: to achieve the needed pressure
Membrane assembly: to perform the desalination process
pH adjustment: to adjust the alkalinity or acid level
Disinfection: to prevent any bacterial or organic growth

EcoPura premium quality water treatment process wholesaler trader for water treatment-3

EcoPura premium quality water treatment process wholesaler trader for water treatment-4

Customizable RO System Capacity

Our Industrial SWRO Series is available with capacities ranging from 8,000 GPD to 660,000 GPD and a maximum feed water TDS of 45,000 ppm. We can provide standard SWRO Series units as well as customizable to fit you water application needs. ECOPURA Sea Water Reverse Osmosis Systems are capable of removing salts as well as other impurities such as bacteria, sugars, proteins, dyes and constituents that have a molecular weight greater than 150-250 Dalton. ECOPURA supplies a full line of standard and customizable Sea Water Reverse Osmosis systems, all of which are engineered using advanced 3D computer modeling and process design software for accurate and customized solutions.

Product Specification

Operation Specifications

Max. feed water temperature: 42°C

Equipment upgrade for TDS up to 50,000 ppm

H2S, turbidity and organics must be removed

Feed water TDS: 10,000-42,000 ppm

Operating pressure: 700 to 1,000 ps

pH tolerance range: 3-11

Feed water pressure: 40 to 80 psi

Antiscalant dosing is required

Max. Iron content: 0.05 ppm

Model	Capacity		Qty of 8040 membranes
Model	GPD	M3/D	2
SWRO8000	8000	30	3
SWRO12000	12000	45	4
SWRO16000	16000	60	6
SWRO24000	24000	90	8
SWRO32000	32000	120	12
SWRO48000	48000	182	16
SWRO64000	64000	242	18
SWRO72000	72000	273	24
SWRO96000	96000	363	28
SWRO112000	112000	424	34
SWRO136000	136000	515	42
SWRO168000	168000	636	49

Operation Specifications

Available Options

Powder coated steel frame

Heavy duty 5 micron cartridge prefilter

Sea water resistant SS pump

Microprocessor/PLC based control panel & VFD

Glycerin-filled 316 SS prefilter pressure gauges

Product & reject flow meters

TFC spiral wound membranes

FRP membrane housings

380V/3Ph/50Hz power supply

Low & high pressure switches

Permeate TDS monitor

Stainless steel high pressure piping

Stainless steel throttling valve for reject stream

Automatic feed shut off valve

Energy recovery on 64K GPD and larger

Booster pump

380-415V/3Ph/50Hz power supply

Product tank level switch

pH controller with sensor

ORP controller with sensor

Hour meter

Cleaning skid

50 micron bag filter for open intake

Carbon prefilter

Multimedia prefilter

UV sterilizer

Custom designed units

Export crating

Chemical dosing units

The ideal applications for an Industrial Sea Water RO system include

Oil Tankers

Island-Based Businesses

Villages & Cities

Cargo Ships

Coastal Developments

Hotels & Resorts

Seaside Work Sites

Work Boats

Fish Processing Plants

Seaside Villas
