factory directly supply bottle labeler equipment opp international market for wholesale

Company Advantages
1. EcoPura automatic bottle labeling machine is produced in fast and accurate flexibility of production methods. The operation of this product is controlled by microcomputer
2. The product is found to run very smooth. It does not bother people by generating unwanting buzzing noises when operating. The product features a high degree of automation
3. This product meets the requirements of international standard quality certification. The product is widely used for commercial applications
4. Its quality is qualified to meet the requirements of certifications. Its overload protection function can effectively protect operators from harm

Product Detail

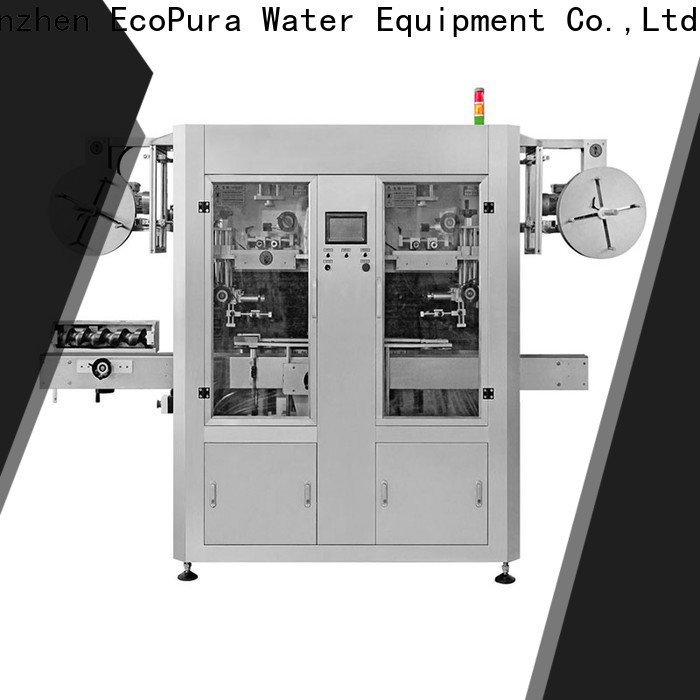

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

EcoPura opp bottle labeler equipment international market for wholesale-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

Company Features
1. With the support of our experienced technicians, bottle labeler equipment is of high quality.
2. Shenzhen EcoPura Water Equipment Co.,Ltd has excellent plans to become an influential bottle labeler supplier. Contact!

f******n

EcoPura bottle labeler is manufactured using a variety of processes. That is, through mechanical drawing, stamping, painting, drying, polishing, testing, and assembly.

s******k

EcoPura automatic bottle labeling machine is of high quality. It is precision treated in manufacturing to eliminate any defects, including porosity, cracks, and roughness.

l******n

There are many important considerations in the design of EcoPura bottle labeler. They are the type of load and stresses caused by the load, motion of parts, form and size of the parts, etc.

e******g

The check for EcoPura bottle labeler is strictly executed. All its components are thoroughly inspected for dimension specification and chemical composition.

x******u

The design of EcoPura bottle labeler is sophisticated. It involves the application of such subjects as thermodynamics, electrical theory, hydraulics, engines, and pumps.

a******m

Superior bottle labeler and remarkable bottle labeler creates EcoPura.
