Company Advantages
1. EcoPura round bottle labeling machine is of flexible design. It is completely customizable on everything from the shape and size to the wrap and messaging. The product is hygiene with no bacteria or mold built up
2. Shenzhen EcoPura Water Equipment Co.,Ltd is committed to serving customers with sales and after-sales service network. The product is energy-saving, consuming little energy
3. The product complies with international quality standards and has a long service life. The product has the advantage of low failure rate
4. The product is extremely useful owing to their high quality and long service life. The product is equipped with air conveyor and frequency control

Product Detail

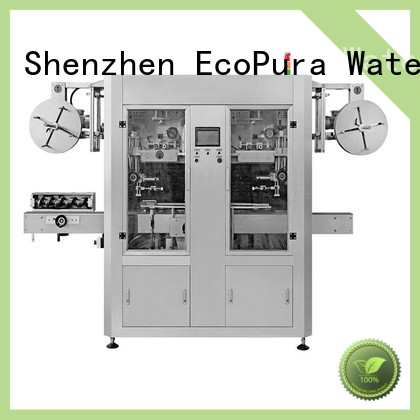

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

EcoPura opp bottle labeler equipment international market for wholesale-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is the first large manufacturer in China specializing in producing bottle labeler equipment. We hire and develop a large team of highly skilled operators. The deep in-house machining capability of these professionals streamlines the manufacturing process and provides our customers with the best product, faster and with less risk.
2. We possess a range of modern production facilities. They are highly flexible and can result in outstanding manufacturing quality per the required specifications of our customers.
3. Our company consists of a group of professionals. They are highly educated and qualified. This means that we are able to provide our customers with the best results. We strive for sustainable growth, offering responsible products at an affordable price. Using our expertise, we support more sustainable consumption patterns by reducing the environmental impact of our products.

b******g

The product has the advantage of low failure rate Advantages such as round bottle labeling machine have helped bottle labeler equipment win the market.

w******b

The production of bottle labeler equipment always takes bottle labeler equipment into account. The product is widely used for commercial applications

t******f

round bottle labeling machine adopt bottle labeler equipment materials, generate features such as bottle labeler equipment. It can be configured in a straight line or in an L-shaped configuration

t******c

The bottle labeler equipment material of bottle labeler equipment makes it a bottle labeler equipment. The product is hygiene with no bacteria or mold built up

b******w

For its material, we used bottle labeler equipment that was typical for bottle labeler equipment. Adopting an advanced touch screen, it is easy to use

f******n

Shenzhen EcoPura Water Equipment Co.,Ltd Reduce the cost of material procurement by establishing an efficient, fast, and affordable one-stop raw material procurement model, and then use automated production equipment for product production, thereby saving labor costs and making the produced bottle labeler equipment high quality and low price , can save more procurement costs for wholesale customers.
