new injection blow moulding machine 48007200bph wholesale for an importer

Product Detail

PET Bottle Molding Solutions

At EcoPura, You can find the best solutions for your bottles blow molding demand, customized services from your bottle shape ideas to final mold confirmation, EcoPura will offer the flexibility to choose a size and shape that best fit your specific needs. All blowers are designated base on Simply Operate ,Energy Saving, fast changeover time and stable performance, the result,

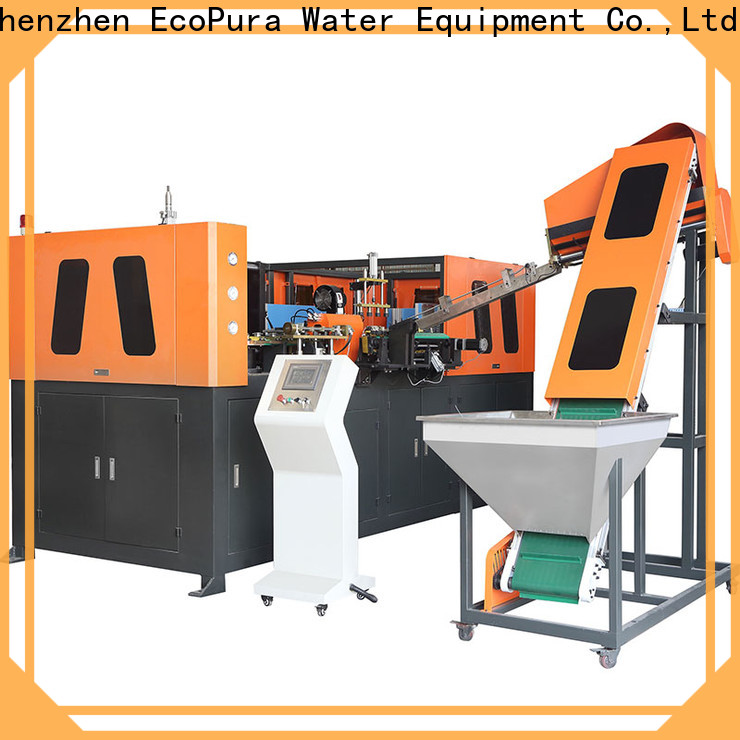

EcoPura new injection blow moulding machine wholesale for an importer-1

EcoPura new injection blow moulding machine wholesale for an importer-2

Product Parameter

Model	EPC-2C	EPC-4C
Mold Cavities	2	4
Speed	2000bph	4000bph
Bottle Size	2L	2L
Bottle Height	＜330 mm	＜330 mm
Bottle Neck	Φ18-Φ38 mm	Φ18-Φ38 mm
Bottle Body Diameter	Φ106 mm	Φ106 mm
Working Pressure	7-9kg/cm2	7-9kg/cm2
Low Pressure Air Consumption	1000L/min	1600L/min
Blowing Air Pressure	25-35kg/cm2	25-35kg/cm2
High Pressure Air Consumption	1500/min	3000L/min
Heating lamp	32pcs	32pcs
Max Heating Powe	24kw	40kw
Installation Power	27kw	43kw
Practical Power	19kw	21.5kw
Machine Size	L2.25mW1.6mH1.7m	L4.5mW1.6mH1.9m
Weight	2500kgs	3500kgs

Product Advantages

♦ Up to 98% production efficiency
♦ A scrap rate of under 0.1%
♦ Changeovers in less than 25 minutes
♦ Oven electrical consumption cut by up to 25%
♦ Compressed air savings up to 20%
