new blow molding companies molding wholesale for commercial industry

Company Advantages
1. The quality control EcoPura bottle making machine is conducted starting from the sourcing of raw fibers to the final stages of the textile production such as dye and coloration. Its overload protection function can effectively protect operators from harm
2. Featuring great flexibility, it is often used in different applications for different purposes in our daily life. It is crucial for supporting and developing the economy. The operation of this product is controlled by microcomputer
3. The product is strongly resistant to get rusty. It has an oxide protective layer which allows it to stand up the damage of wet environments. Adopting an advanced touch screen, it is easy to use

Product Detail

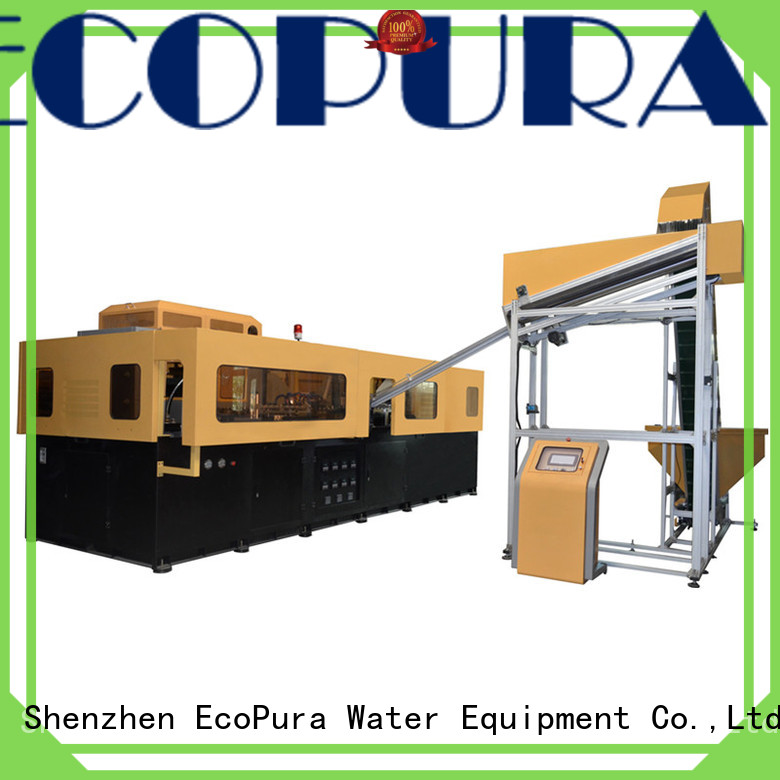

9600-12000bph Servo blow molding machine EPC-6E EPC-9E

Over the years, EcoPura continuously optimized our design and technology innovation, we launched our latest blower EPC-6E ,9E, high speed blow molding machine with fully servo motor drive, can reach stable capacity of 9600bph-12000bph with highly intelligent, simply operate, energy saving, fast changeovers and outstanding performance. Adopts Siemens PLC & Touch screen which has perfect monitoring settings, fault display, automatic calculation report, memory storage functions etc to ensure the blower production situation under control at all times. All Servo control main drive, preforms division, mould clamping and stretching;all parameters can be settled on the PLC. The complex process is completed by digitalization which is safer, faster and more accurate with high flexibility.In addition, EPC-6E Blower has a patent design for cooling device which ensures the preforms heating head temperature cooling down after bottles coming out. There is a cooling water channel under the heating unit. When preforms are heating, the cooling water channel is used to block the heat of the lamp tube. Also there is a cooling air system under the cooling water channel to cool the bottle mouth and protect the tooth mouth from distortion. EcoPura unique innovative linear design structure with high blowing speed, sustainable 24-hour production, independent blowing valve group reduce production energy consumption!EPC-6E,9E Blower mainly used for blowing Water/CSD/Juice beverage bottle, Oil bottle ,condiment bottle ,cosmetic bottle and other packaging containers

EcoPura new blow molding companies wholesale for commercial industry-1

EcoPura new blow molding companies wholesale for commercial industry-2

EcoPura new blow molding companies wholesale for commercial industry-3

EcoPura new blow molding companies wholesale for commercial industry-4

EcoPura new blow molding companies wholesale for commercial industry-5

Product Parameter

Model	EPC-6EL	EPC-9EL
Mold Cavities	6	9
Speed	9600bph	12000bph
Bottle Size	Up to 0.75L	Up to 0.75L
Bottle Height	＜245 mm	＜245 mm
Bottle Neck	Φ18-Φ38 mm	Φ18-Φ38 mm
Bottle Body Diameter	Φ68 mm	Φ68mm
Working Pressure	7-9kg/cm2	7-9kg/cm2
Low Pressure Air Consumption	2000L/min	2000L/min
Blowing Air Pressure	25-35kg/cm2	25-35kg/cm2
High Pressure Air Consumption	6000L/min	8000L/min
Heating lamp	48pcs	72pcs
Installation Power	96kw	110kw
Practical Power	30-50kw	40-60kw
Machine Size	L4.5mW2.2mH2.3m	L5.8mW2.2mH2.4m
Weight	7500kgs	9500kgs

Product Advantages

♦ Servo Control all process
♦ Electrical components are World famous brand: FESTO, Schneider, Omron etc
♦ Visibility, maintainability, standardized components, Safety
♦ A Scrap rate of under 0.1%
♦ Up to 99% production efficiency
♦ Changeovers in less than 30mins
♦ Oven electrical consumption cut by up to 25%-30%
♦ Compressed air saving up to 20%-25%
