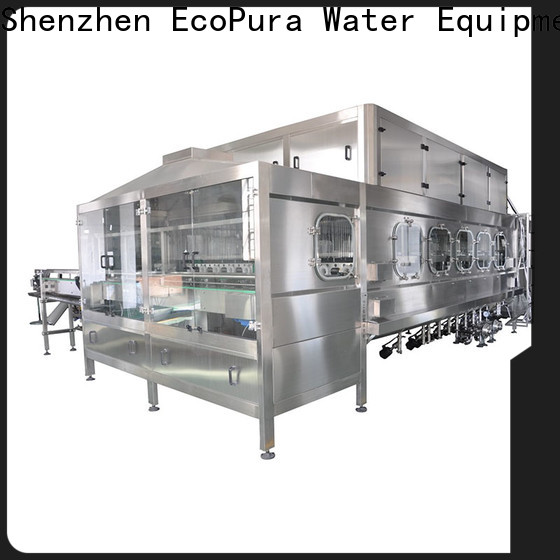

ECOPURA 5gallon bottle washing filling capping machine HSG1200 with capacity 1200bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura most popular water bottling equipment more buying choices for commercial production-1

EcoPura most popular water bottling equipment more buying choices for commercial production-2
EcoPura most popular water bottling equipment more buying choices for commercial production-3
EcoPura most popular water bottling equipment more buying choices for commercial production-4

EcoPura most popular water bottling equipment more buying choices for commercial production-5

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing

EcoPura most popular water bottling equipment more buying choices for commercial production-6

EcoPura most popular water bottling equipment more buying choices for commercial production-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


EcoPura water bottling equipment is designed by engineering experts with optimum quality materials. The product features excellent torque accuracy
The production of EcoPura filling system is energy-efficient and environmental-friendly. Equipped with a safety system, the product can detect the faults
The raw materials of EcoPura filling system are highly secure. The product has a reliable electrical system, without any short circuit, or electric leakage occurring
EcoPura filling system is designed according to the latest market trend. It has a robust design, supported by an aluminum plate
water bottling equipment is made by high quality materials. The product is equipped with air conveyor and frequency control
Our own quality control personnel and authoritative third parties have carefully inspected the products. The product is able to provide a great purifying effect
