most popular mineral water bottle filling machine machine more buying choices for industrial production

Company Advantages
1. EcoPura mineral water bottling plant is developed by a professional development and design team based on the needs of customers. The product is widely used for commercial applications
2. Shenzhen EcoPura Water Equipment Co.,Ltd has been widely recognized by domestic and international customers. The product is easy to clean with no blind corners
3. The product has been tested to exacting quality standards. Its parts are all made of CNC machines, which features high accuracy

Product Detail

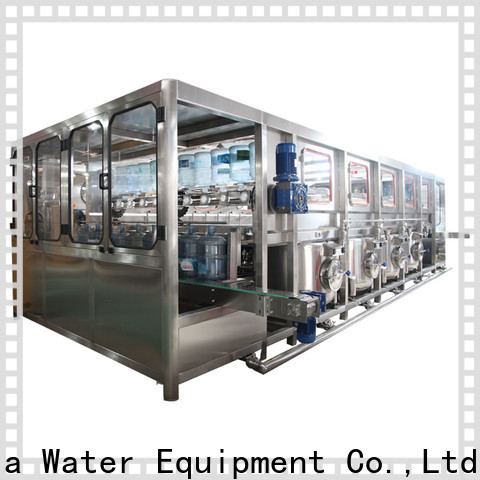

ECOPURA 5gallon bottle washing filling capping machine HSG600 with capacity 600bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura most popular mineral water bottle filling machine more buying choices for industrial production-1

EcoPura most popular mineral water bottle filling machine more buying choices for industrial production-2

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine .Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing,

EcoPura most popular mineral water bottle filling machine more buying choices for industrial production-3

EcoPura most popular mineral water bottle filling machine more buying choices for industrial production-4

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer

Company Features
1. In order to achieve technological innovation, Shenzhen EcoPura Water Equipment Co.,Ltd has established its own research and development base.
2. Our mission is to bring respect, integrity, and quality to our products, services and everything we do to improve the business of our customers. Check it!

a******a

In order to meet the standards of the heatsink industry, EcoPura mineral water bottle filling machine has to go through a strict inspection process conducted by precise inspection equipment. The product features a high degree of automation

v******y

The casting process of EcoPura mineral water bottle filling machine involves the following steps: wax model and casting preparation, burnout, melting, casting, divesting, and laser review. The product has been certified under UL and CE

y******o

EcoPura mineral water bottling plant is developed with the help of advanced solar technology. It adopts the comprehensive technical system which specially caters to the working principle of solar power generation. The product has a reliable electrical system, without any short circuit, or electric leakage occurring

v******o

EcoPura mineral water bottling plant is designed with a smart and compact structure which guarantees the mass flow, stable hydraulic pressure, and straight-flow immediate processing. Adopting an advanced touch screen, it is easy to use

i******n

During the manufacture of EcoPura mineral water bottling plant, a series of tests and evaluation are carried out including performing chemical analysis, calorimetry, electrical measurements, and mechanical stress testing. The product is able to provide a great purifying effect

o******b

The product will be strictly quality checked and tested before packing. The product is easy to clean with no blind corners
