most popular bottle filling machine price water factory for distribution

Company Advantages
1. EcoPura filling system is carefully designed by considering many factors. For example, part tolerances, size limitations, materials performance, and operational efficiency factors have been taken into considerations. The operation of this product is controlled by microcomputer
2. The product's favorable application prospects establish a reputation in the market. The product features a high degree of automation
3. The product is 100% qualified as our quality control program has eliminated all defects. The product is carefully designed with all NSF approved components

Product Detail

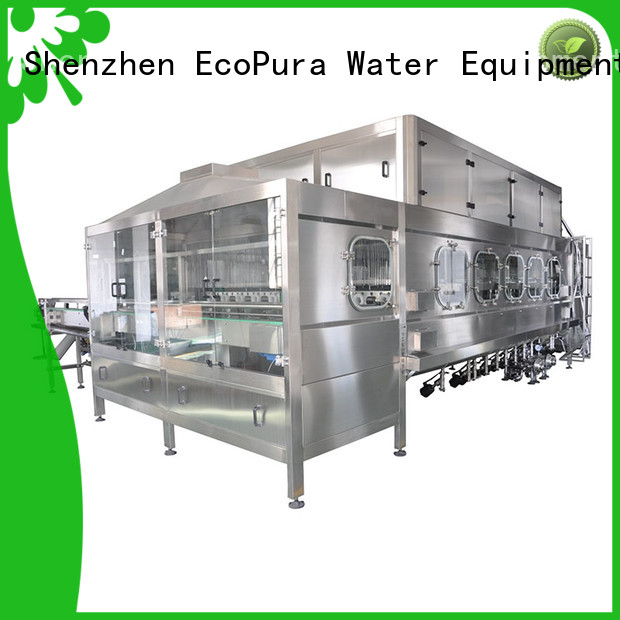

ECOPURA 5gallon bottle washing filling capping machine HSG1200 with capacity 1200bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura most popular bottle filling machine price factory for distribution-1

EcoPura most popular bottle filling machine price factory for distribution-2

EcoPura most popular bottle filling machine price factory for distribution-3

EcoPura most popular bottle filling machine price factory for distribution-4

EcoPura most popular bottle filling machine price factory for distribution-5

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing

EcoPura most popular bottle filling machine price factory for distribution-6

EcoPura most popular bottle filling machine price factory for distribution-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer

Company Features
1. We have a group of professional R&D staff. Product development is a high-risk process, but our developers are able to develop products that meet genuine customer needs by setting measurable goals and reviewing progress at each stage of development.
2. Shenzhen EcoPura Water Equipment Co.,Ltd has been on the right track with the help of our relentless workers. Check it!

w******q

The company has always adhered to fine management for many years, and strictly controls the quality of every important link such as product design, research and development, production, testing, and delivery to ensure that the filling system produced are all qualified products that meet national standards.

f******e

Shenzhen EcoPura Water Equipment Co.,Ltd There are modern workshops, standardized production workshops, automated production equipment, strict quality inspection system, etc., which can ensure that all filling system produced by our company are of qualified and high quality.

g******e

As a manufacturer with many years of industry experience, Shenzhen EcoPura Water Equipment Co.,Ltd keeps up with market trends, not only draws on advanced production concepts at home and abroad, but also insists on using advanced technology and craftsmanship to manufacture filling system, which makes filling system have stable performance and excellent quality quality.

w******d

This product has the characteristics of simple operation, low material consumption, non-toxicity and more reasonable cost performance.

a******r

Based on the selection of high-quality materials and the application of exquisite craftsmanship, bottle filling machine price has a reasonable structure and excellent performance, durable, and is a trustworthy high-quality product.

q******w

Shenzhen EcoPura Water Equipment Co.,Ltd regards quality and reputation as the life of the enterprise, strictly controls product quality, strictly controls production costs, and guarantees filling system's high quality, high price and high cost performance.
