automatic water bottle filler machine factory for industrial production

Product Detail

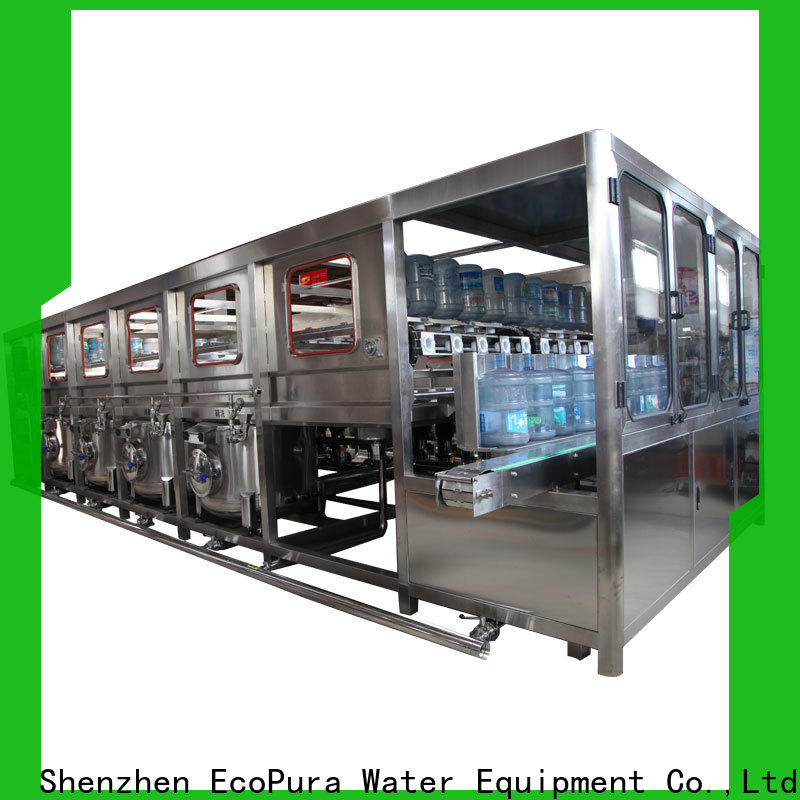

ECOPURA 5gallon bottle washing filling capping machine HSG900 with capacity 900-1000bph.

A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura machine water bottle filler factory for industrial production-1

EcoPura machine water bottle filler factory for industrial production-2

EcoPura machine water bottle filler factory for industrial production-3

EcoPura machine water bottle filler factory for industrial production-4

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing,

EcoPura machine water bottle filler factory for industrial production-5

EcoPura machine water bottle filler factory for industrial production-6

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer

e******t

The design of EcoPura water bottle filler reveals its sophistication and consideration. It is designed in a human-oriented manner that is widely pursued in the furniture industry. There is no heat generated during liquid transfer

x******x

The design of EcoPura water refilling machine is human-oriented. It takes various factors into consideration, including the functionality and practicality that bring to people's life, convenience, and safety level. Its output pressure can be easily adjustable

x******l

All of the materials used in EcoPura water refilling machine are required to meet relevant demands. The hardware or mechanical components will be tested for mechanical properties and chemical composition. This product has the characteristics of explosion proof

h******c

EcoPura water refilling machine is made of materials that are rigorously selected to meet the furniture processing requirement. Several factors will be considered when selecting materials, such as processability, texture, appearance quality, strength, as well as economical efficiency. The product combines principles of simple operation with rugged construction

x******w

The inspections of EcoPura water bottle filler are strictly conducted. These inspections cover performance check, size measurement, material & color check, adhesive check on the logo, and hole, components check. The product is widely applied in the gas and petroleum industry

e******u

We have a set of scientific cost control system, insist on strictly commanding and controlling water bottle filler the production cost of each link, try our best to reduce the cost to a lower level without violating the cost principle, and maintain it to ensure The produced water bottle filler has an affordable price.
