standard juice filling equipment machine more buying choices for upgrade industries

Enterprise Strength

EcoPura Water Treatment Equipment & Bottling Machine has a unique quality management system for production management. At the same time, our large after-sales service team can improve the quality of the products by investigating the opinions and feedback of customers.

Product Comparison

EcoPura Water Treatment Equipment & Bottling Machine has the ability to meet different needs. bottle filling machine is available in multiple types and specifications. The quality is reliable and the price is reasonable.Compared with other products in the same category, bottle filling machine produced by EcoPura Water Treatment Equipment & Bottling Machine has the following advantages.

Company Advantages
1. EcoPura juice filling equipment is designed by a team of professionals who have extensive industry knowledge and clearly know customer needs.
2. Its service life and performance are greatly optimized and improved.
3. Shenzhen EcoPura Water Equipment Co.,Ltd has the best designers who are actively developing new products based on the spirit of innovation.
4. From design to installation for juice filling equipment, we will provide detailed guide and help.

Product Detail

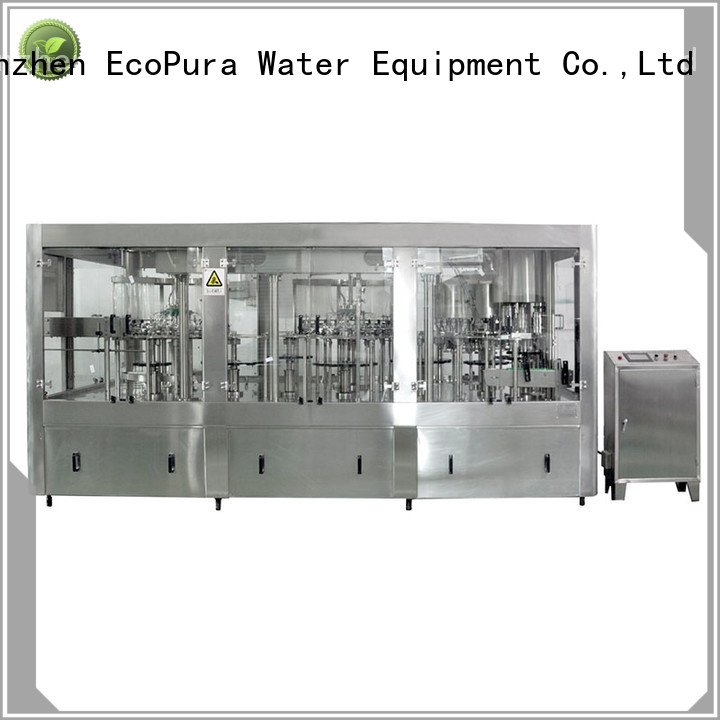

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura machine juice filling equipment more buying choices for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura machine juice filling equipment more buying choices for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura machine juice filling equipment more buying choices for upgrade industries-3

EcoPura machine juice filling equipment more buying choices for upgrade industries-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura machine juice filling equipment more buying choices for upgrade industries-5

EcoPura machine juice filling equipment more buying choices for upgrade industries-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. tea filling machine is produced professionally by Shenzhen EcoPura Water Equipment Co.,Ltd with reasonable prices.
2. The technology competency of Shenzhen EcoPura Water Equipment Co.,Ltd is highly recognized.
3. Sustainable thinking and action are represented in our processes and products. We act with consideration of resources and stand up for climate protection. To assume social responsibility, we have established a corporate sustainable development team to manage sustainable development with ESG elements at the core. We produce our products responsibly and sustainably. We work hard to reduce our production waste, degradation, and pollution throughout the whole life cycle of our products. Our company is devoted to the fair, just, and equal business cooperation. We pledge not to engage in any practices that harm the interests and rights of our clients and consumers.

m******k

EcoPura tea filling machine has passed through a comprehensive range of quality control tests to make sure it is totally free of hazardous substances.

d******r

The fabric of EcoPura tea filling machine is carefully chosen by our designers on the basis of fashion trends, quality, performance, and suitability.

f******o

The entire production process of EcoPura tea filling machine is tightly controlled, from selecting the finest fabrics to processing them into finished clothing.

q******e

The fabrics of EcoPura juice filling equipment has passed through the stretch test and it is proven to be qualified for proper elasticity.

p******x

EcoPura juice filling equipment has been tested on dimensional stability, performance(abrasion or pilling), and colorfastness to meet the regulatory requirements of the apparel industry.

i******f

This product can last for decades. Its joints combine the use of joinery, glue, and screws, which are tightly combined with each other.
