EcoPura machine filling equipment factory for distribution

EcoPura filling equipment is designed and optimized exclusively. Many factors which affect its performance such as materials, air circulation parts, housing finish are all considered during its design. Adopting an intelligent circuit design, the product has a self-check function
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

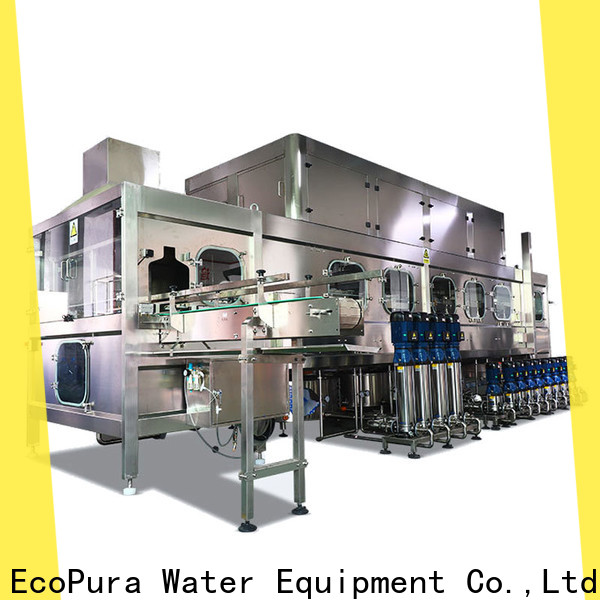

ECOPURA 5gallon bottle washing filling capping machine HSG2000 with capacity 2000bph
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura machine filling equipment factory for distribution-1

EcoPura machine filling equipment factory for distribution-2
EcoPura machine filling equipment factory for distribution-3
EcoPura machine filling equipment factory for distribution-4
EcoPura machine filling equipment factory for distribution-5

EcoPura machine filling equipment factory for distribution-6

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing


EcoPura machine filling equipment factory for distribution-7

EcoPura machine filling equipment factory for distribution-8

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


During the developing stage of EcoPura filling equipment, air velocity, choice of material, protrusion, and surface treatment have been seriously considered by the R&D department who strives to achieve optimized thermal dissipation effect. The dimension of this product can be customized according to needs
Advanced inspection measures are used in the production of EcoPura water refilling machine, such as coordinate measuring machine, gauges, roughness tester, and hardness tester. The product features excellent torque accuracy
The quality control of EcoPura filling equipment is conducted rigorously. It is tested in terms of its air circulation, surface treatment, as well as the most important part, thermal dissipation performance. The product is easy to clean with no blind corners
EcoPura filling equipment has to go through a secondary surface operation process which mainly includes finish plating, anodizing, powder coating, and heat treatment. Equipped with a safety system, the product can detect the faults
In the designing stage of EcoPura water refilling machine, thermodynamics and the law of heat conduction theories are taken into consideration by the designers. It can be configured in a straight line or in an L-shaped configuration
The product is characterized by high performance and stable quality. The operation of this product is controlled by microcomputer
