low moq wine filling machine filling factory for industrial production

Product Details

Adhering to the concept of 'details and quality make achievement', EcoPura Water Treatment Equipment & Bottling Machine works hard on the following details to make the bottle filling machine more advantageous.Closely following the market trend, EcoPura Water Treatment Equipment & Bottling Machine uses advanced production equipment and manufacturing technology to produce bottle filling machine. The product receives favors from the majority of customers for the high quality and favorable price.

Company Advantages
1. The design of EcoPura wine filter machine is a consequence of many combined parameters. Geometry, materials, surface area design, and air velocity are all seriously considered in enhancing the performance of the product.
2. This product is warranted to be free from defects in quality and performance with normal manufacturing tolerances and quality control procedures.
3. This product is widely used in the market due to its huge economic potential.

Product Detail

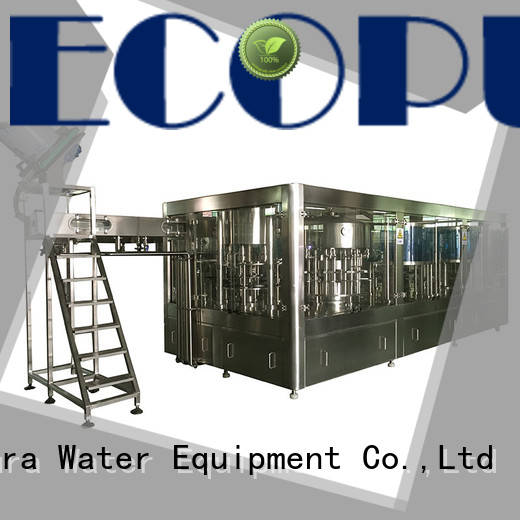

ECOPURA 3-in-1 Glass 0.3L-1.5L HSG-G series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

EcoPura low moq wine filling machine factory for industrial production-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3G	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-3000bph	1.5kw	SIEMENS
HSG16-12-6G		3000-4500bph	1.8kw
HSG24-16-6G		5000-6000bph	2.2kw
HSG24-18-8G		7000-8000bph	2.2kw
HSG24-24-8G		10000-12000bph	3.0kw
HSG32-32-12G		15000-18000bph	5.5kw
HSG38-38-14G		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura low moq wine filling machine factory for industrial production-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura low moq wine filling machine factory for industrial production-3

EcoPura low moq wine filling machine factory for industrial production-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The lift cylinder presses the bottle on to the filling valve where it is pre-evacuated several times. With non-carbonated beverages, the filling valve opens due to a movement of the control cylinder. With carbonated beverages, the bottle is pressurised and the valve opens as soon as the bottle and the ring bowl have the same pressure. At both of the filling processes, the liquid runs through a spreader along the bottle wall. The valve closes as soon as the bottle is entirely filled. The correction channel opens and the excessive fill quantity is displaced from the bottle to the end of the vent tube. With carbonated beverages, a snifting phase is performed in order to reduce the pressure in the bottle head space. Non- carbonated beverages can be removed from the filling valve right after filling is completed.

Aluminum Roll-On Capping Part

After they have been sorted according to their positions in the sorter, the caps are fed to the capper via an open chute. A towing shoe positions the caps, which are then directly picked up by the bottle. If a cap is missing, a safety plunger prevents contact between the rollers and the bottle neck finish. Depending on the cap type, a “fixed” or a deep-drawing plunger is used for press-on and shaping. The thread is rolled out via moveable arms, and if necessary, the tamper-evident band is flanged. The lateral pressure can be easily readjusted with adjusting screws.

EcoPura low moq wine filling machine factory for industrial production-5

EcoPura low moq wine filling machine factory for industrial production-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has gained years of expertise in the developing, designing, and manufacturing of wine filter machine . We enjoy a good reputation in the industry.
2. Shenzhen EcoPura Water Equipment Co.,Ltd is widely known for its solid technical foundation.
3. We work hard to meet customer demand for environmentally optimal products. We combine our industry knowledge with the renewable, recyclable and biodegradable materials to manufacture innovative products. Sustainability is embedded in our operational practices. We have made great efforts in energy efficiency and pollution reduction. We also have embedded sustainability in culture.

c******x

EcoPura wine filter machine is under the real-time control of the R&D team. The team will carry out a routine sampling and analysis of the raw materials so as to acquire information necessary for the economic appraisal of ores and concentrates.

f******r

EcoPura wine filter machine is produced under advanced equipment. It will be processed by fastness to washing tester, steamer and washer, as well as vacuum cleaning equipment designed for textile.

x******o

EcoPura wine filter machine is under constant control in terms of health, safety, and environmental protection standards, as evidenced by the CE certificate issued.

t******o

The quality control of EcoPura wine filter machine is conducted rigorously. It is tested in terms of its air circulation, surface treatment, as well as the most important part, thermal dissipation performance.

c******h

All EcoPura wine filling machine are manufactured in compliance with rubber and plastic industry standards and are tested for quality conformance in the laboratory.

r******q

The product features stable performance. The proportions of the various raw materials are carefully mixed together to achieve consistent properties.
