low moq wine bottling machine wine trader for market

Company Advantages
1. EcoPura wine filler is manufactured in compliance with the industry defined norms and guidelines. It can be configured in a straight line or in an L-shaped configuration
2. Since this product can work continuously over any period of time without a break, it greatly increases productivity and efficiency during operation. The product is easy to clean with no blind corners
3. Our wine bottling machine can be a great help in wine filler . Its parts are all made of CNC machines, which features high accuracy

Product Detail

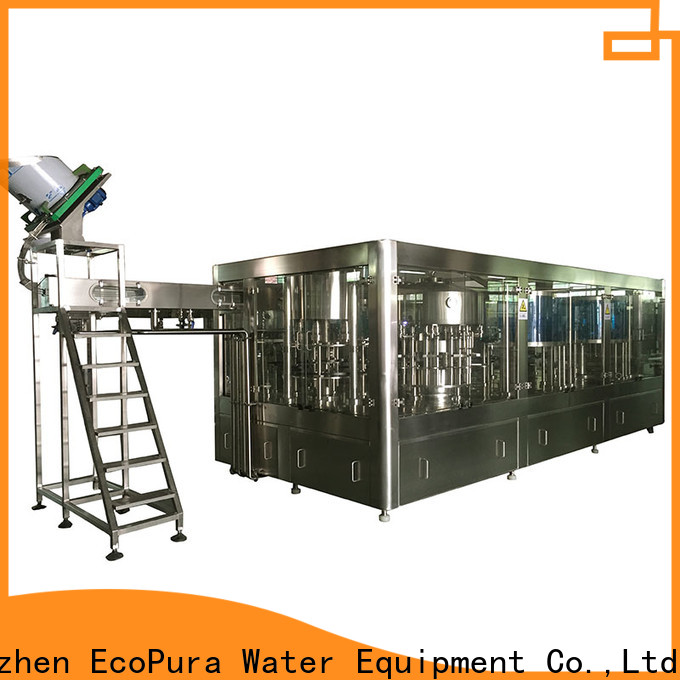

ECOPURA 3-in-1 Glass 0.3L-1.5L HSG-G series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

EcoPura low moq wine bottling machine trader for market-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3G	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-3000bph	1.5kw	SIEMENS
HSG16-12-6G		3000-4500bph	1.8kw
HSG24-16-6G		5000-6000bph	2.2kw
HSG24-18-8G		7000-8000bph	2.2kw
HSG24-24-8G		10000-12000bph	3.0kw
HSG32-32-12G		15000-18000bph	5.5kw
HSG38-38-14G		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura low moq wine bottling machine trader for market-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura low moq wine bottling machine trader for market-3

EcoPura low moq wine bottling machine trader for market-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The lift cylinder presses the bottle on to the filling valve where it is pre-evacuated several times. With non-carbonated beverages, the filling valve opens due to a movement of the control cylinder. With carbonated beverages, the bottle is pressurised and the valve opens as soon as the bottle and the ring bowl have the same pressure. At both of the filling processes, the liquid runs through a spreader along the bottle wall. The valve closes as soon as the bottle is entirely filled. The correction channel opens and the excessive fill quantity is displaced from the bottle to the end of the vent tube. With carbonated beverages, a snifting phase is performed in order to reduce the pressure in the bottle head space. Non- carbonated beverages can be removed from the filling valve right after filling is completed.

Aluminum Roll-On Capping Part

After they have been sorted according to their positions in the sorter, the caps are fed to the capper via an open chute. A towing shoe positions the caps, which are then directly picked up by the bottle. If a cap is missing, a safety plunger prevents contact between the rollers and the bottle neck finish. Depending on the cap type, a “fixed” or a deep-drawing plunger is used for press-on and shaping. The thread is rolled out via moveable arms, and if necessary, the tamper-evident band is flanged. The lateral pressure can be easily readjusted with adjusting screws.

EcoPura low moq wine bottling machine trader for market-5

EcoPura low moq wine bottling machine trader for market-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is widely known as one of the pioneers in manufacturing wine filler . We offer quality products in this field for many years. Superb processing level for wine bottling machine is acquired by Shenzhen EcoPura Water Equipment Co.,Ltd.
2. Shenzhen EcoPura Water Equipment Co.,Ltd has got CE certificate and all kinds of testing reports.
3. Shenzhen EcoPura Water Equipment Co.,Ltd has successfully tackled many technical difficulties concerning complete sets of production machines. In addition to seeking business development, we still strive to make a positive impact on our local communities. We use locally based resources rather than outsourcing them, hence, in this way, we can protect the home-grown jobs. Get quote!

p******o

Absorbing the soul of modern design concept, the EcoPura wine bottling machine stands high for its unique design style. Its elaborate appearance shows our unparalleled competitiveness. The product can be made of a three-layer stainless steel plate to guard against rust

u******f

EcoPura wine filler is developed with an efficient production process. The production time of each product is greatly optimized and the loss and waste of raw materials are effectively reduced. The product has been certified under CE

w******s

The raw materials of EcoPura wine filler are of high quality. It is sourced from top grade suppliers whose materials are in line with the quality standards. Its agitator speed could be adjusted by frequency converter

z******j

Apart from our professional team, a perfect EcoPura wine filler also can't be finished without high-quality materials. The product is extensively exported to Vietnam, India, Laos, Myanmar, Indonesia, Thailand, Ghana, Jamaica, Dominica, etc

h******u

Advanced production technology: wine bottling machine is manufactured following the guidance of lean production method and completed by the combined efforts of advanced equipment and skilled workers. The product is widely applied to cosmetic, food, biological and pharmaceutical industries

r******i

The flexibility of this kind of product is very fine and it is very light with the characters of deformation resistance and long service life. The product can be designed to fed materials automatically or manually
