low moq wine bottling equipment machine trader for industrial production

Company Advantages
1. With its own professional development and design team, Shenzhen EcoPura Water Equipment Co.,Ltd has enough capability to produce wine bottling equipment based on the needs of customers. The product can ensure a high filtration rate
2. Shenzhen EcoPura Water Equipment Co.,Ltd enjoys a network of exclusive partnerships with many wine bottling equipment brands. The use of this product helps in increasing the production of drinks
3. The product is built to last. It holds the features of rust-resistant to prevent it from water or moisture corrosion on the basis of the high-quality metal materials used in it. With a compact structure, the product can operate stably
4. It is endowed with convenient features. Its operating features have been carefully studied. The controlling panel is located on the basis of convenient handling. It has a robust design, supported by an aluminum plate
5. This machine has the desired motion. Various possible mechanisms are shortlisted and analyzed during the design phase, and the best mechanism is selected for its design. The product is able to provide a great purifying effect

Product Detail

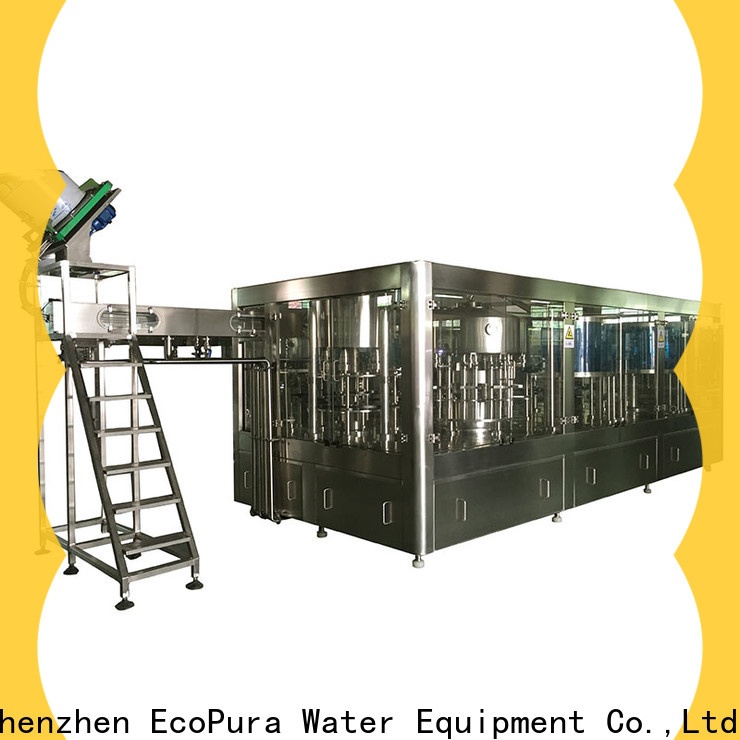

ECOPURA 3-in-1 Glass 0.3L-1.5L HSG-G series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

EcoPura low moq wine bottling equipment trader for industrial production-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3G	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-3000bph	1.5kw	SIEMENS
HSG16-12-6G		3000-4500bph	1.8kw
HSG24-16-6G		5000-6000bph	2.2kw
HSG24-18-8G		7000-8000bph	2.2kw
HSG24-24-8G		10000-12000bph	3.0kw
HSG32-32-12G		15000-18000bph	5.5kw
HSG38-38-14G		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura low moq wine bottling equipment trader for industrial production-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura low moq wine bottling equipment trader for industrial production-3

EcoPura low moq wine bottling equipment trader for industrial production-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The lift cylinder presses the bottle on to the filling valve where it is pre-evacuated several times. With non-carbonated beverages, the filling valve opens due to a movement of the control cylinder. With carbonated beverages, the bottle is pressurised and the valve opens as soon as the bottle and the ring bowl have the same pressure. At both of the filling processes, the liquid runs through a spreader along the bottle wall. The valve closes as soon as the bottle is entirely filled. The correction channel opens and the excessive fill quantity is displaced from the bottle to the end of the vent tube. With carbonated beverages, a snifting phase is performed in order to reduce the pressure in the bottle head space. Non- carbonated beverages can be removed from the filling valve right after filling is completed.

Aluminum Roll-On Capping Part

After they have been sorted according to their positions in the sorter, the caps are fed to the capper via an open chute. A towing shoe positions the caps, which are then directly picked up by the bottle. If a cap is missing, a safety plunger prevents contact between the rollers and the bottle neck finish. Depending on the cap type, a “fixed” or a deep-drawing plunger is used for press-on and shaping. The thread is rolled out via moveable arms, and if necessary, the tamper-evident band is flanged. The lateral pressure can be easily readjusted with adjusting screws.

EcoPura low moq wine bottling equipment trader for industrial production-5

EcoPura low moq wine bottling equipment trader for industrial production-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. EcoPura has been focusing on producing first-rate wine bottling equipment. Our company has an excellent sales team. They are well-trained with insightful and strong knowledge of the products and industry know-how. This has enabled them to professionally solve client's concerns.
2. The factory runs under a system for production management. This system, clear and rigorous, covers requirements for nearly all production stages, from incoming raw materials to product testing, offering high-quality assurance.
3. Our company has abundant human resources. Most of them are industry professionals who can deploy their comprehensive knowledge and innovation to guarantee the reliability and performance of our products. By providing the best quality and professional service, Shenzhen EcoPura Water Equipment Co.,Ltd hopes build more cooperation with every customer. Inquiry!
