Model | EcoSL100 | EcoSL150 | EcoSL250 | EcoSL400 |
Capacity | 100b/min | 150b/min | 250b/min | 400b/min |
Label Height | ＜250mm | ＜250mm | ＜250mm | ＜250mm |
Label Material | PVC, PET, OPS, PE, R-PET, PLA, PP | |||
Label Thickness | Ranging from 15um to 130um | |||
Containers Spec | Suitable for bottle size up to 2Liters with dia ranging from 50-100mm | |||
Power | 3kw | 3kw | 3kw | 4kw |

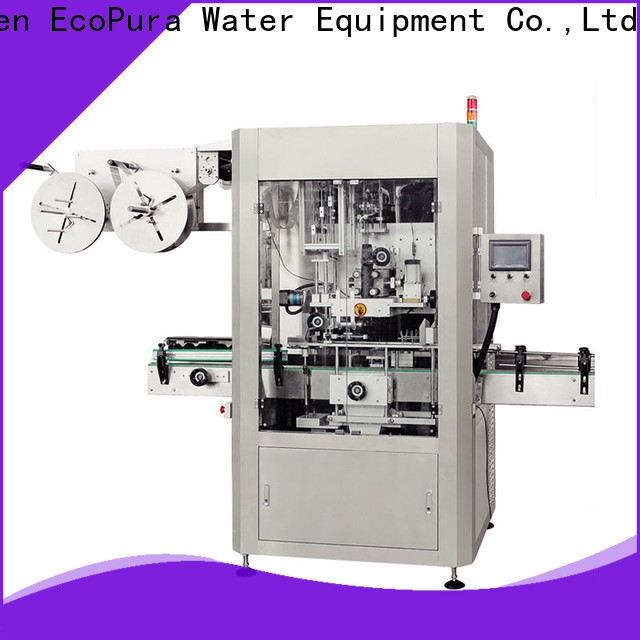

♦1.The infeed worm spaces the incoming containers to the pitch.
♦2.The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦3.The deflection rollers in the sleeve supply unit function as a buffer.
♦4.The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦6.The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦7.Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦8.The downstream brush system ensures that the label is precisely fitted.
♦1.The containers with sleeves applied to them are fed through the steaming tunnel.
♦3.The nozzle bars supply the steam to the sleeve from the bottom upwards..
♦4.The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦5.The finished, sleeved container leaves the steaming tunnel.
