low cost juice filling equipment 3in1 looking for buyer for upgrade industries

Company Advantages
1. EcoPura juice bottle filling machine will go through numerous stages of production, and based on different requirements from customers, different shoe materials making methods will be adopted. Adopting an intelligent circuit design, the product has a self-check function
2. Operators who use this product generally encounter production conditions and productivity that are much improved from the past. The product features a high degree of automation
3. Featuring elimination of any piece of paper, this product contributes a lot to the environment such as saving trees from cutting down. Its overload protection function can effectively protect operators from harm

Product Detail

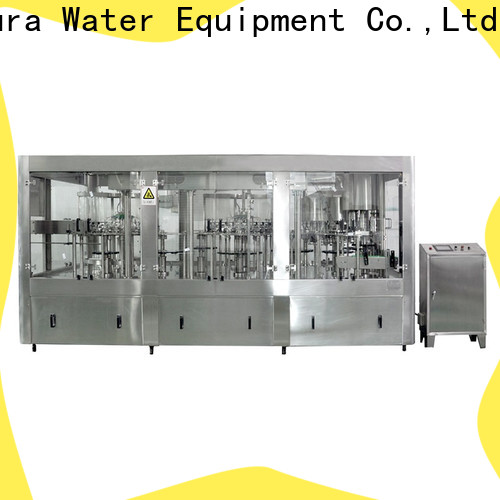

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura low cost juice filling equipment looking for buyer for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura low cost juice filling equipment looking for buyer for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura low cost juice filling equipment looking for buyer for upgrade industries-3

EcoPura low cost juice filling equipment looking for buyer for upgrade industries-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura low cost juice filling equipment looking for buyer for upgrade industries-5

EcoPura low cost juice filling equipment looking for buyer for upgrade industries-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. EcoPura has remained excellent in the juice filling equipment industry for decades. The cutting-edge technology adopted in juice filling machine helps us win more and more customers.
2. Our professional equipment allows us to fabricate such juice bottle filling machine .
3. Quality is above everything in Shenzhen EcoPura Water Equipment Co.,Ltd. We insist on integrity. We ensure that the principles of integrity, honesty, quality, and fairness are integrated into our business practices around the world. Call now!

t******q

EcoPura juice bottle filling machine has to go through an entire production process. From concept development, through detailed mechanical design&control systems design, manufacture, and final commissioning, each process is well conducted. The product is widely used for water production

e******n

The design of EcoPura juice filling equipment is the integrated knowledge of physics and electrochemistry. It is created using the knowledge of condensed matter physics, plasma physics, and activity coefficient of the electrolyte solution, ion strength, etc. The use of this product helps in increasing the production of drinks

m******b

EcoPura juice bottle filling machine is developed under the guidance of water treatment technicians and water management professionals who provides comprehensive advice on the pool cleaning solution. It has a robust design, supported by an aluminum plate

h******u

EcoPura juice bottle filling machine has been tested in all aspects. It has been detected in terms of insulation resistance, current leakage, and current load. The product is easy to clean with no blind corners

g******h

In creating a design for EcoPura juice bottle filling machine, one of the components that interact is the element of design. Its element and principles of design are flexible and could be interpreted within the context of current fashion. The product features excellent purification technology

k******k

The scope of usage of juice filling machine have been enlarged gradually due to its juice filling machine properties. The product is able to provide a great purifying effect
