latest csd filling machine filling wholesale for importer

Company Advantages
1. EcoPura csd filling machine has gone through various tests that are laid down in international specifications. These tests include fineness, soundness, and strength. Its parts are all made of CNC machines, which features high accuracy
2. Workers do not have to worry that the use of this product will cause any potential dangers. It can reduce human intervention mistakes caused by the malfunction. The product has been certified under UL and CE
3. Production practice shows that csd filling machine is more practical in bottle filling machine manufacturers with good effect, long service life and low cost. It has a robust design, supported by an aluminum plate

Product Detail

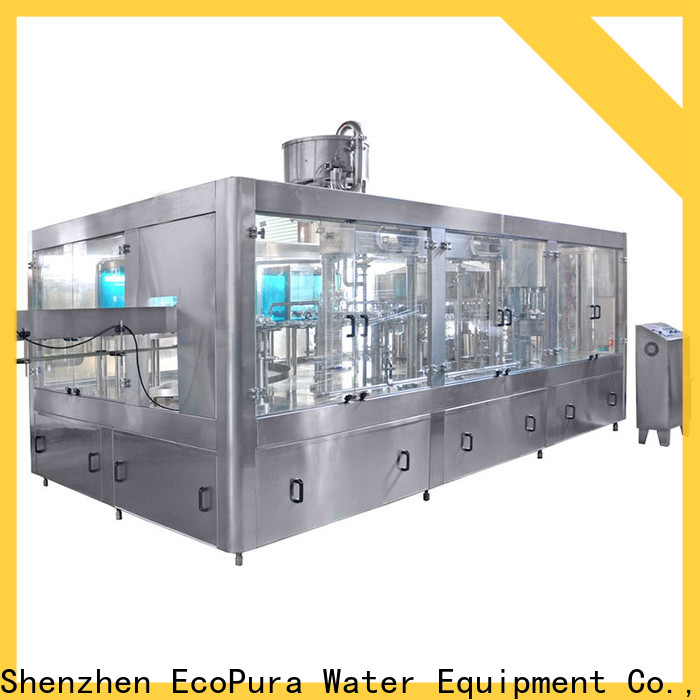

ECOPURA 4-in-1 PET 0.3L-1.5L DHSG-series monobloc equipped with isobaric filler nozzles designated for filling carbonated beverages such as Cola, beer, carbonated water and other liquids etc

EcoPura latest csd filling machine wholesale for importer-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura latest csd filling machine wholesale for importer-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316 Contactless filling SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura latest csd filling machine wholesale for importer-3

EcoPura latest csd filling machine wholesale for importer-4

Ozonated water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The PET container is first pressed on by the PET lifting unit and pressurised afterwards. Once the same pressure is in the ring bowl and the PET container, the filling valve will be opened and the filling process starts. The liquid is gently fed via a swirl insert into the bottle. Two different filling speeds guarantee optimum flow behaviour. A flow meter monitors the fed liquid quantity. Once the exact filling volume has been reached, the flow meter provides a signal and the valve closes electro pneumatically Maximum flexibility − Filling of non-carbonated and carbonated products on one system Maximum filling accuracy − Precise determination of fill quantity via inductive flow meter Gentle product treatment during filling − Low-foam and low-turbulence filling vias wirl insert in the valve Hygiene and stable filling processes − Separate gas channels for pressurization and snifting ECOPURA filling machines in their standard version are suitable for CIP and beverage mixer

EcoPura latest csd filling machine wholesale for importer-5

EcoPura latest csd filling machine wholesale for importer-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura latest csd filling machine wholesale for importer-7

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is an important production base of csd filling machine , especially bottle filling machine manufacturers . With a modern production line, Shenzhen EcoPura Water Equipment Co.,Ltd has the ability to fully produce high quality drink filling machine.
2. We have a strong customer base spread over the world. So far, we have won a relatively big marketplace in the overseas markets with our strong technical base.
3. Our products have been sold at home and abroad. Because of reasonable prices and high quality we offer, as well as our good reputation, our products win the favor from various levels of consumers. We never stop searching for new ways to relieve the impacts of our environments. We try to minimize the use of energy, water and reduce production waste.

v******o

From the materials to designs, EcoPura csd filling machine is totally guaranteed by our professional expertise. The product has an automatic data collection function

w******o

EcoPura drink filling machine is designed with a trendy and aesthetically-appealing look. The product has the advantage of low energy consumption

a******c

EcoPura bottle filling machine manufacturers is designed with an innovative and attractive appearance. The product is dust-proof and water-resistant

e******s

EcoPura drink filling machine is designed with an aesthetically-pleasing look that sets it apart from the ordinary. The product requires less training than other same types

z******z

EcoPura drink filling machine is manufactured as per the current industry standards. The product is noted for its high precision

i******m

bottle filling machine manufacturers The design is scientific and reasonable, the structure is tight and compact, the practicability is strong, the safety is high, it has the characteristics of anti-corrosion and wear resistance, strong self-cleaning ability, long service life, stable quality and high quality.
