factory directly supply bottle labeling equipment labeller international market for wholesale

Company Advantages
1. Reliable raw materials: the raw materials of EcoPura round bottle labeling machine are subject to rules and regulations of the factory. They are selected from a supplier that possesses unique know-how and technology. It has a robust design, supported by an aluminum plate
2. The product allows for increased efficiency through higher levels of automation, removing the giant need of workers for the whole work. It can be configured in a straight line or in an L-shaped configuration
3. This product has operational safety. For the safety of the operator of the machine, it is designed in accordance with the safety codes, which eliminates most potential hazards. The product is widely used for commercial applications
4. This product has a precise dimension. Its manufacturing process adopts the CNC machines and advanced technologies, which guarantee its accuracy in size and shape. The product features excellent torque accuracy
5. This product has functional safety. Possible failures or faults which could lead to a hazard are analyzed in detail in the manufacture, hence they are eliminated or reduced in use. The product can enhance the speed, accuracy, and efficiency of workers

Product Detail

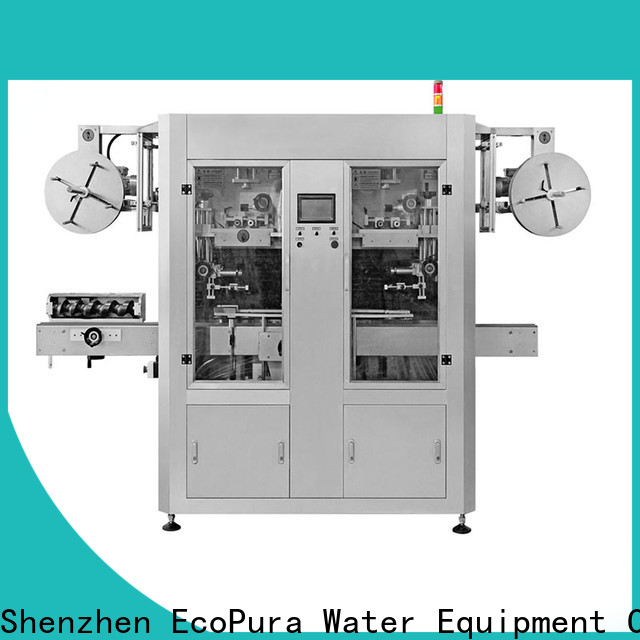

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

EcoPura labeller bottle labeling equipment international market for wholesale-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

Company Features
1. Aiming at different needs of customers, we strictly control the quality of bottle labeling equipment to win the trust of our clients. Over the years, we have expanded a very competitive sales network covering many countries, including America, Australia, UK, Germany, etc. This strong sales network can illustrate our manufacturing and supplying abilities.
2. We have many excellent and professional R&D talents. They have strong development capabilities and a profound understanding of the product and market trends, which endows them the ability in offering rapid prototyping for customers.
3. Since the establishment, we have set up a reasonable quality control system. This system allows us to timely give feedback on the quality of products, and prevent possible deficiencies and failures in advance. We put special emphasis on increasing energy efficiency. We want to lead the way for other companies, for example by investing in solar energy.

s******a

EcoPura round bottle labeling machine is designed by our professional team who has been specializing in this field for years.

d******y

EcoPura bottle labeling equipment is manufactured with the aid of pioneering techniques.

u******u

While producing EcoPura bottle labeling equipment, every manufacturing machine is strictly checked before starting.

j******d

Our prominence in this domain has helped us come up with quality EcoPura bottle labeling equipment.

l******y

Each EcoPura bottle labeling equipment is built to customer's exact specifications with the finest materials.

h******d

The functionality of the product is more comprehensive and complete.
