factory directly supply bottle labeler machine labeller international market for commerce

Product Detail

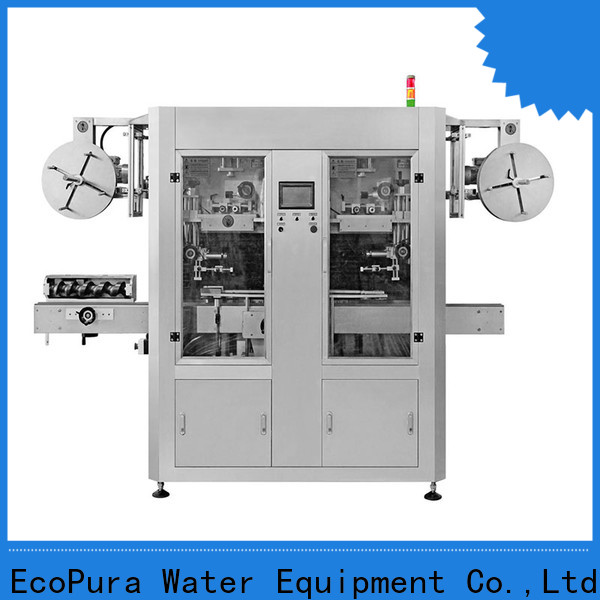

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

EcoPura labeller bottle labeler machine international market for commerce-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

g******h

Scientific production: the production of EcoPura bottle labeler machine is scientifically managed. A strict real-time monitoring system is carried out during each production step to make sure zero error of its quality.

u******o

Innovation-oriented design: EcoPura bottle labeler machine is innovatively designed by a team of professional designers. They are full of innovative ideas and are willing to embrace the changing market demands.

c******x

Premium raw materials: the raw materials of EcoPura auto label machine are well selected and strictly analyzed by our quality control member. They compare with the data through high-intensity testing experiments and then select the best materials.

q******k

EcoPura auto label machine, manufactured using well-selected materials and the latest production technology, is exquisite in every detail.

x******b

As our technical team has been dedicated themselves to improving the design, EcoPura auto label machine now has a design combining innovation, aesthetics, and practicality.

z******w

We not only have long-term stable raw material suppliers and multiple automated mechanical production equipment, but also have established a complete cost control system, which effectively reduces production costs, so the auto label machine we produce is cheaper than similar products.
