Product Detail

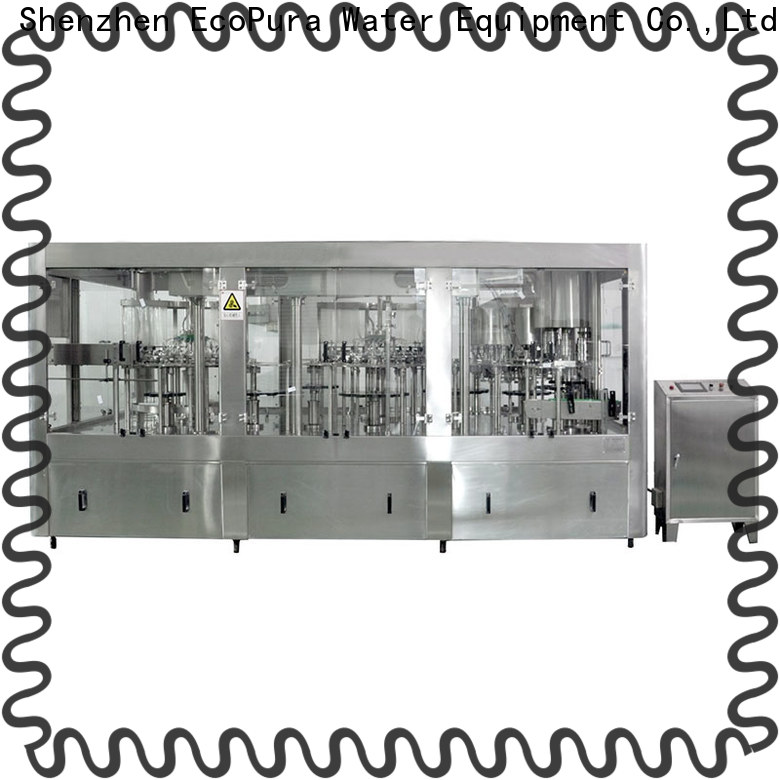

ECOPURA 4-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura juice juice filling machine international market for trader-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
RHSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
RHSG24-24-18-8		7000-8000bph	2.2kw
RHSG24-24-24-8		10000-12000bph	2.0kw
RHSG32-32-32-12		15000-18000bph	5.5kw
RHSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura juice juice filling machine international market for trader-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura juice juice filling machine international market for trader-3

EcoPura juice juice filling machine international market for trader-4

Ozonated Water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

EcoPura juice juice filling machine international market for trader-5

EcoPura juice juice filling machine international market for trader-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish.As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura juice juice filling machine international market for trader-7

o******l

Each production stage of EcoPura juice filling machine is strictly conducted by advanced machines including CNC lathes, milling machines, grinding machine, cutting machines, and bending machines.

f******u

The design of EcoPura juice bottle filling machine is completed by strictly adopting the solar principle. The knowledge of photoelectric chemistry and photodecomposition reaction are used in order to make the most of solar energy.

j******e

The manufacturing process of EcoPura juice bottle filling machine includes profiles extruding, cutting, CNC machining, deburring, and surface treating. All of these procedures have to be inspected by the QC team to meet the highest requirements in the heat sink industry.

a******y

EcoPura juice bottle filling machine has undergone a series of the assessment process in terms of its sizes (width, height, length), colors, and resistance to environmental conditions (rain, wind, snow, sand storms, etc.)

g******s

The quality of EcoPura juice bottle filling machine is guaranteed by a series of tests. It has gone through inspection on its seam force, tensile strength, fiber stiffness, fiber resilience, etc.

d******y

Shenzhen EcoPura Water Equipment Co.,Ltd Not only insist on using high-quality and reasonably priced raw materials for manufacturingjuice bottle filling machine, but also strictly control every link of product production to ensure that all raw materials can be fully utilized, reduce the loss rate of raw materials, and promote the production of Shenzhen EcoPura Water Equipment Co.,Ltd 10058] Compared with other products in the market, it has a more prominent price advantage.
