low cost juice filling equipment juice international market for upgrade industries

Company Advantages
1. The design of EcoPura juice filling machine price is intricate. It is based on building structural systems along with other factors like climate and aesthetical preferences. Equipped with a safety system, the product can detect the faults
2. The operators will encounter less fatigue and tiredness with this product, which allows them to focus on more professional things. The product can enhance the speed, accuracy, and efficiency of workers
3. The product has the advantage of overload protection. It has reliable cables that can carry momentary overloads for a very short time period. The product is easy to clean with no blind corners
4. This product has high tensile strength and low bending stiffness. The adopted materials allow for large reversible elastic deformations. The product is widely used for commercial applications
5. The product has an excellent and precise filtration effect. The reverse osmosis technique only allows the hydrone and dissolved oxygen to get through and excludes out sands, pesticide, bacteria, and heavy metals. The product is hygiene with no bacteria or mold built up

Product Detail

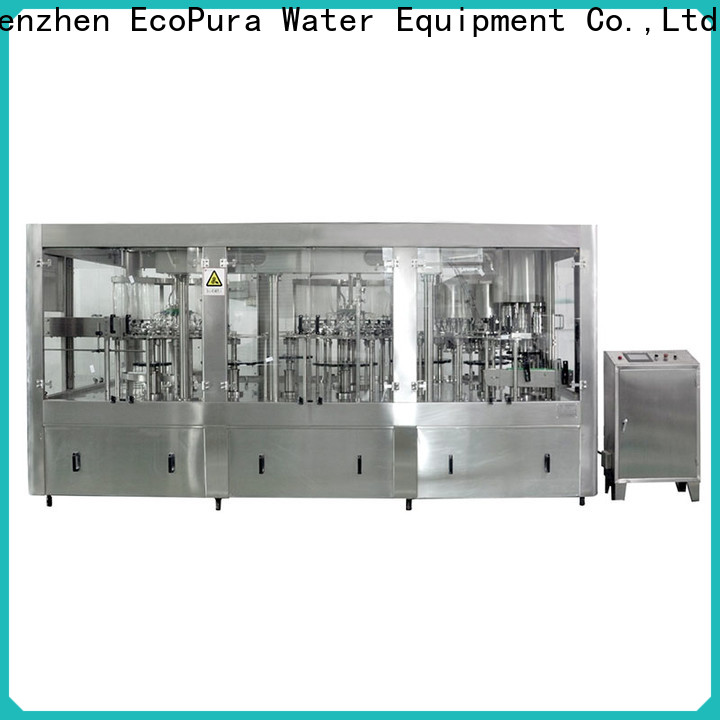

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura juice juice filling equipment international market for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura juice juice filling equipment international market for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura juice juice filling equipment international market for upgrade industries-3

EcoPura juice juice filling equipment international market for upgrade industries-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura juice juice filling equipment international market for upgrade industries-5

EcoPura juice juice filling equipment international market for upgrade industries-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is among the major manufacturers for top quality juice filling equipment.
2. We adopt world-advanced technology when manufacturing juice bottling machine .
3. We are an environmentally responsible company. From the coming of the raw materials, the manufacturing process, to the final product inspection stages, we consume as little as resources and energy as possible. Please contact us!
