ISO9001 certified wine bottling equipment machine manufacturer for distribution

Company Advantages
1. EcoPura wine filler has been tested for quality. All its main components, including the gears, pistons, engines and other moving parts, are tested to meet our established standards. The product has been certified under UL and CE
2. This product will remove the physical need of man, and created a society that has never been known to man. The use of this product helps in increasing the production of drinks
3. The product is skin-friendly. The fibers have a smooth feel and a natural wicking action that keeps moisture away from the skin. The product is able to provide a great purifying effect
4. The product has a deodorant effect. The antimicrobial and odor-resistant technique is used to prevent germ growth and dermatophytosis. It can be configured in a straight line or in an L-shaped configuration
5. The product is very soft and flexible. During the production, it is easy to mold shape due to its thermoplastic properties. The product has a reliable electrical system, without any short circuit, or electric leakage occurring

Product Detail

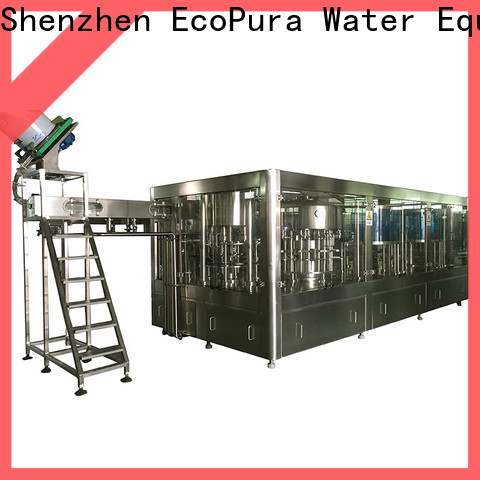

ECOPURA 3-in-1 Glass 0.3L-1.5L HSG-G series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

EcoPura ISO9001 certified wine bottling equipment manufacturer for distribution-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3G	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-3000bph	1.5kw	SIEMENS
HSG16-12-6G		3000-4500bph	1.8kw
HSG24-16-6G		5000-6000bph	2.2kw
HSG24-18-8G		7000-8000bph	2.2kw
HSG24-24-8G		10000-12000bph	3.0kw
HSG32-32-12G		15000-18000bph	5.5kw
HSG38-38-14G		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura ISO9001 certified wine bottling equipment manufacturer for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura ISO9001 certified wine bottling equipment manufacturer for distribution-3

EcoPura ISO9001 certified wine bottling equipment manufacturer for distribution-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The lift cylinder presses the bottle on to the filling valve where it is pre-evacuated several times. With non-carbonated beverages, the filling valve opens due to a movement of the control cylinder. With carbonated beverages, the bottle is pressurised and the valve opens as soon as the bottle and the ring bowl have the same pressure. At both of the filling processes, the liquid runs through a spreader along the bottle wall. The valve closes as soon as the bottle is entirely filled. The correction channel opens and the excessive fill quantity is displaced from the bottle to the end of the vent tube. With carbonated beverages, a snifting phase is performed in order to reduce the pressure in the bottle head space. Non- carbonated beverages can be removed from the filling valve right after filling is completed.

Aluminum Roll-On Capping Part

After they have been sorted according to their positions in the sorter, the caps are fed to the capper via an open chute. A towing shoe positions the caps, which are then directly picked up by the bottle. If a cap is missing, a safety plunger prevents contact between the rollers and the bottle neck finish. Depending on the cap type, a “fixed” or a deep-drawing plunger is used for press-on and shaping. The thread is rolled out via moveable arms, and if necessary, the tamper-evident band is flanged. The lateral pressure can be easily readjusted with adjusting screws.

EcoPura ISO9001 certified wine bottling equipment manufacturer for distribution-5

EcoPura ISO9001 certified wine bottling equipment manufacturer for distribution-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. EcoPura is highly sought after in the wine bottling equipment market. We have employed a professional R&D team. Drawing their years of development experience, they can help identify challenges early on to assure products are successful in a competitive marketplace.
2. Our factory has set up a strict production management system. This system includes inspection for the incoming raw materials, assembly and packaging requirements, and waste disposal requirements.
3. We operate and manage a network of sales offices and distribution centers in China. This allows us to service our customers quickly and efficiently, anywhere in the world. Favored by customers is the wish for EcoPura in the long run. Get quote!
