ISO9001 certified Bottle Labeling Machine double overseas market for commerce

Product Detail

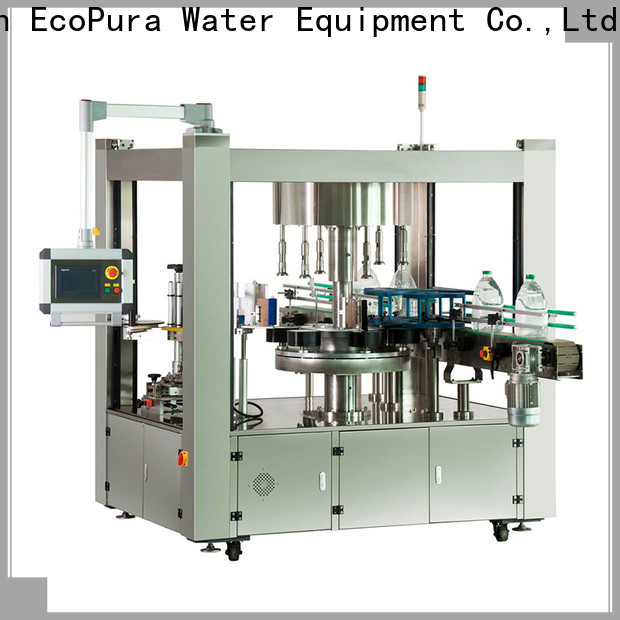

OPP Hot Melt Labeller

Labelling PET Containers,especially for Soft drinks and water, primarily uses wraparound roll-fed technology, applying either paper or plastic labels with hot glue.EcoPura Roll-fed labelling solutions deliver the Accuracy and flexibility needed to match all your needs.

EcoPura ISO9001 certified Bottle Labeling Machine overseas market for commerce-1

Completely Automated

Hot Melt has continuous throughput, and it automatically controls the flow of containers entering and exiting the machine. The containers are picked up from the conveyor by a screw feeder, which sets them at the right pitch, and they are then transferred by the infeed starwheel to the bottle caroused. the labels are precisely cut while a PLC command and servo-motor provide an exact cut-off point. Two narrow strips of hotmelt glue the labels together ,after being labeled, the containers are transferred to the outfeed starwheel which places them on the outfeeds conveyor

Flexibility

Hot Melt Can apply wraparound labels to both round and irregularly shaped containers

Product Parameter

Model	HML12R9K	HML16R15K	HML20R24K	HML24R36K
Head	12	16	20	24
Capacity	9000bph	15000bph	24000bph	36000bph
HMI	SIEMENS PLC & Touch Screen
Labeling Accuracy	± 1mm
Label Size	Length 130-330mm Width 20-145mm
Label Material	OPP, Paper, Paper-Plastic Composite
Bottle Spec	Diameter :50-110mm, height 50-300mm
Heating glue temperature	120~160℃, Hot melt Glue at both ends
Air Consumption	6Kg-8L/min

Accuracy

♦ The high quality of the final product is due to process accuracy
♦ glue is applied very precisely with reduced glue leakage and carbonization, providing savings on glue use
♦ the gun never comes into direct contact with the container this eliminates any misalignments of the containers caused by the applicator rollers and guarantees uniform label pick up
♦ no glue circulates within the system, and so there is no need to replace contaminated or degraded glue

i******h

Shenzhen EcoPura Water Equipment Co.,Ltd Through strict selection and supervision of raw material supply channels, the source is well controlled, and then Bottle Labeling Machine is produced and processed relying on its own advanced equipment, mature technology and technology, and strict procedures and processes are carried out for each step Control, control the core of production, and finally conduct a detailed inspection of each finished product in accordance with the relevant international quality standard system to ensure that every product produced is a top-quality product with excellent quality .

s******v

We have a professional, dedicated and dedicated management team and a group of experienced production personnel. The team members work hard, insist on adopting advanced design concepts and using unique production technology to manufacture Bottle Labeling Machine, which makes Bottle Labeling Machine not only reasonable in structure, but also And the quality is stable.

f******g

We insist on using advanced concepts and exquisite craftsmanship to process Bottle Labeling Machine, so that Bottle Labeling Machine not only has a reasonable structure, but also has excellent performance, both aesthetics and practicality, high quality, and can meet customers' high requirements demand for quality products.

l******s

Shenzhen EcoPura Water Equipment Co.,Ltd There are modern workshops, standardized production workshops, automated production equipment, strict quality inspection system, etc., which can ensure that all wine bottle labeling machine produced by our company are of qualified and high quality.

e******r

After years of industry exploration, Shenzhen EcoPura Water Equipment Co.,Ltd has not only accumulated rich production experience, but also mastered advanced production technology, which can realize Bottle Labeling Machine good and fast production, and all Bottle Labeling Machine have undergone strict quality inspections and meet national standards Quality inspection standards, quality is trustworthy.

g******w

The product features vibration resistance. By reducing the amplitude and frequency of the vibrational waves, it outwardly disperses the energy caused by vibrations.
