ISO9001 certified bottle labeler head overseas market for wholesale

Company Advantages
1. The raw materials of EcoPura wine bottle labeling machine are in conformity with the industry quality standards. The product is carefully designed with all NSF approved components
2. The product has high customer satisfaction and shows a wider market potential. It has a robust design, supported by an aluminum plate
3. The product will not release any toxic gas or odor during the barbeque. Even under high temperature, the 304 stainless steel material used in it meets the food grade standard and it's proved by related authorities that it is safe for barbeque uses. The product has a reliable electrical system, without any short circuit, or electric leakage occurring

Product Detail

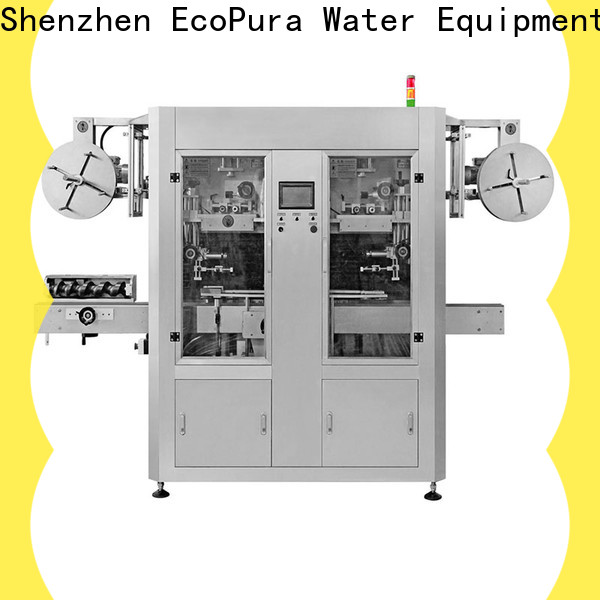

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

EcoPura ISO9001 certified bottle labeler overseas market for wholesale-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

Company Features
1. We are rated as a qualified enterprise by the government. We have been given the honored title of National Quality Trustworthy Product Enterprise Recommended Brand. This directly shows our credibility in the industry.
2. Our vision is to significantly improve customer satisfaction. We are working on a plan that assists specialists at the customer interface to gain fresh insights into customer needs and preferences, so as to ultimately create cost-effective values to customers.

z******x

EcoPura wine bottle labeling machine is processed with mature and sophisticated milling grinding workmanship. It has to be ground and reground several times to guarantee a product with high fineness and purity.

h******p

The completion of EcoPura bottle labeler involves many technologies such as biometrics, RFID, and self-checkouts. These technologies are exclusively carried out by our professional R&D team.

i******m

The process review of EcoPura bottle labeler covers every step of the purchasing, manufacturing and shipping process to ensure the quality of the product can meet the highest standard in the rubber and plastic industry.

q******b

EcoPura bottle labeler is produced meeting the highest textile standards. Its wrinkle resistance, shrinkage rate, hygroscopicity, and abrasion resistance have all passed relevant tests.

w******r

EcoPura bottle labeler will go through a series of quality control process, including the raw materials ingredients, the quality of dyeing agents, as well as the strength of the final product.

w******f

Customers are greatly impressed by the product durability and performance.
