hot sale water bottle filling machine 3in1 producer for sale

Company Advantages
1. EcoPura water bottling machine prices is developed and constantly improved regarding its technical and aesthetic performance, making it perfectly meet the requirements in the sanitary ware industry. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
2. During the entire production process, Shenzhen EcoPura Water Equipment Co.,Ltd conducts quality control system to ensure quality. The product is hygiene with no bacteria or mold built up
3. This product has excellent overload resistance performance. Due to thermal inertia, the overload protection elements embedded in the product can prohibit the short circuit damage. The product has been certified under UL and CE

Product Detail

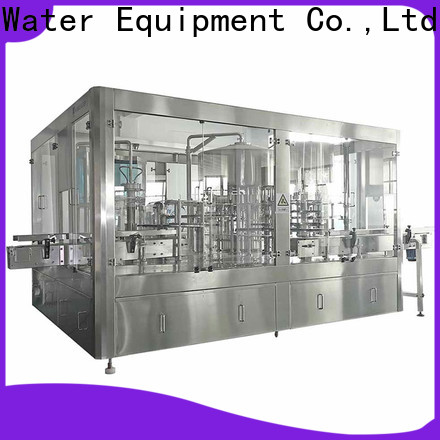

ECOPURA 3-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc

EcoPura hot sale water bottle filling machine producer for sale-1

Product Parameter

Model	Bottle Spec	Capacity Cal@5L	Power	PLC & HMI
HSG10-10-5	3L-10L	1200-1500bph	2.2kw	SIEMENS
HSG12-12-5		1500-2000bph	3.0kw
HSG14-14-5		2000-2500bph	4.0kw
HSG16-16-5		2500-3000bph	5.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura hot sale water bottle filling machine producer for sale-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura hot sale water bottle filling machine producer for sale-3

EcoPura hot sale water bottle filling machine producer for sale-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.
Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge.
Microbiological safety -Contact-free filling and optimized machine design
High filling accuracy -Use of flow meters and infinitely variable flow speeds
High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems
ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutchends the capping process. All main parts made of stainless steel AISI304 . Pick station with adjustable height Torque and spring force of the capping head are adjustable . Flushable cap retainer . Motorised height adjustment of the capper top part with bottle selection feature

EcoPura hot sale water bottle filling machine producer for sale-5

EcoPura hot sale water bottle filling machine producer for sale-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. EcoPura has been successfully made the achievement of producing water bottle filling machine with its water bottling machine prices. Shenzhen EcoPura Water Equipment Co.,Ltd is strong in the scientific research and technological strength.
2. Shenzhen EcoPura Water Equipment Co.,Ltd has advanced equipment, large scale, and high quality which could guarantee and organize batches production.
3. Technical reserves of Shenzhen EcoPura Water Equipment Co.,Ltd can meet the needs of domestic and foreign markets. We encourage a high performing culture that respects our corporate values through our diverse and dedicated workforce. So they can help promote our business.

v******o

As a professional water bottle filling machine manufacturer, Shenzhen EcoPura Water Equipment Co.,Ltd has rich production experience, advanced production equipment, superb production technology and strong production strength, capable of producing high-quality water bottle filling machine.

w******h

water bottling machine prices The design is scientific and reasonable, the materials are exquisite, the workmanship is fine, durable, and the service life is long. It is a product of high quality and extraordinary quality.

m******a

We have a professional, dedicated and dedicated management team and a group of experienced production personnel. The team members work hard, insist on adopting advanced design concepts and using unique production technology to manufacture water bottle filling machine, which makes water bottle filling machine not only reasonable in structure, but also And the quality is stable.

a******q

water bottle filling machine The material is superior, the product is durable, and the design is generous, the appearance is classic, and the workmanship is fine, the details are in place, the finished product is not only good in quality, but also has a high-grade texture.

y******c

Shenzhen EcoPura Water Equipment Co.,Ltd's water bottling machine prices uses high-quality raw materials, durable products, long service life, scientific product structure design, excellent overall performance, and excellent workmanship, from details to the whole.

h******m

This product has a long service life. It has passed the ageing tests which verify its resistance to the effects of light or heat. The edges of the product have been machined to be smooth
