high quality juice filling machine machine looking for buyer for upgrade industries

Product Detail

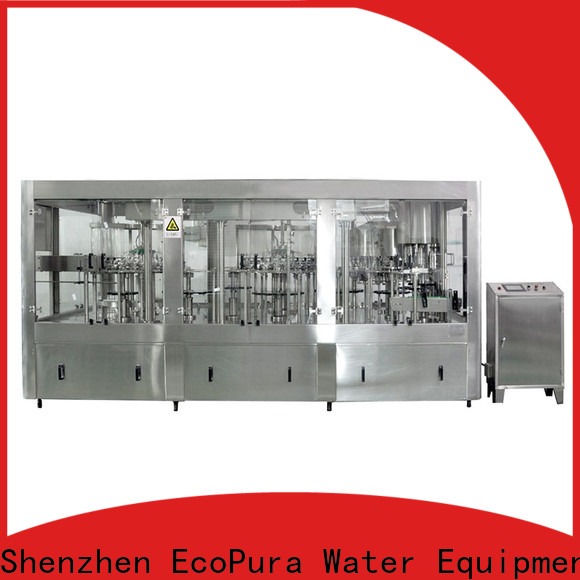

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura high quality juice filling machine looking for buyer for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura high quality juice filling machine looking for buyer for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura high quality juice filling machine looking for buyer for upgrade industries-3

EcoPura high quality juice filling machine looking for buyer for upgrade industries-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura high quality juice filling machine looking for buyer for upgrade industries-5

EcoPura high quality juice filling machine looking for buyer for upgrade industries-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

l******s

EcoPura juice filling machine is manufactured according to strict quality standards and comply with international safety regulations. Every element of this product is made using only the best materials. The product is manufactured by an experienced and professional design team

n******l

EcoPura juice filling machine is exclusively designed. Many factors have been taken into considerations, from the circuit diagram to PCB CAD design or PCB layout. The product adopts a unique and modern design

p******q

The manufacture of EcoPura tea filling machine operates according to international standards in order to be in a position to make realistic and standard-based statements. The product is provided with OED and OEM service

y******b

EcoPura tea filling machine has passed performance tests and quality assurance tests in the phone accessory industry. It is certified under CCC, CE, UL, and GOST. The product can greatly reduce ink loss

u******j

The manufacture of EcoPura tea filling machine involves the following stages: medical material and processes specification, vendor selection, detailed part design, software fine-tuning and testing, failure mode analysis, and tolerance analysis. The product is the fruit of continuous innovation and improvement

q******n

The quality of the product has been greatly improved since our workers become more and more proficient in the production. The power supply of the product is super strong
