high quality juice filling machine 3in1 international market for upgrade industries

Product Details

With a focus on details, EcoPura Water Treatment Equipment & Bottling Machine strives to create high-quality bottle filling machine.EcoPura Water Treatment Equipment & Bottling Machine is certified by various qualifications. We have advanced production technology and great production capability. bottle filling machine has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.

Company Advantages
1. EcoPura tea filling machine is fabricated from top quality materials and professional workers.
2. EcoPura's juice filling machine product applies to most mainstream brands.
3. The product is guaranteed to have an exceptional quality that lives up to customer's expectation.
4. Professional test procedures in Shenzhen EcoPura Water Equipment Co.,Ltd are necessary to assure clients to receive the most reliable juice filling machine .
5. EcoPura mainly produces juice filling machine and also serves customers with high quality.

Product Detail

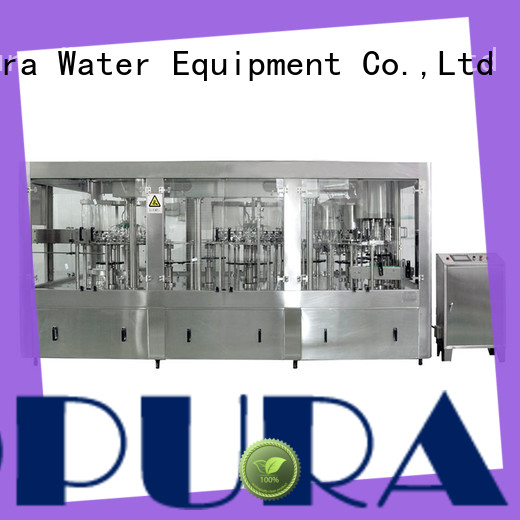

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura high quality juice filling machine international market for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura high quality juice filling machine international market for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura high quality juice filling machine international market for upgrade industries-3

EcoPura high quality juice filling machine international market for upgrade industries-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura high quality juice filling machine international market for upgrade industries-5

EcoPura high quality juice filling machine international market for upgrade industries-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has been investing many efforts in the market research, development, production, and marketing of tea filling machine over the years.
2. Our Chinese factory is equipped with a wide range of production facilities. Adopting the latest technologies, these facilities enable us to manufacture high-end quality products.
3. Shenzhen EcoPura Water Equipment Co.,Ltd can provide customization service for our juice filling machine . Get price! Shenzhen EcoPura Water Equipment Co.,Ltd would like to offer customers with top quality and good service. Get price!

i******g

EcoPura juice filling machine is under the real-time control of the R&D team. The team will carry out a routine sampling and analysis of the raw materials so as to acquire information necessary for the economic appraisal of ores and concentrates.

j******b

EcoPura juice filling machine is produced under advanced equipment. It will be processed by fastness to washing tester, steamer and washer, as well as vacuum cleaning equipment designed for textile.

l******p

EcoPura juice filling machine is under constant control in terms of health, safety, and environmental protection standards, as evidenced by the CE certificate issued.

h******b

The quality control of EcoPura juice filling machine is conducted rigorously. It is tested in terms of its air circulation, surface treatment, as well as the most important part, thermal dissipation performance.

i******j

All EcoPura tea filling machine are manufactured in compliance with rubber and plastic industry standards and are tested for quality conformance in the laboratory.

n******i

The product features stable performance. The proportions of the various raw materials are carefully mixed together to achieve consistent properties.
