high quality juice filling equipment 4in1 looking for buyer for distribution

Company Advantages
1. juice filling equipment is widely known for its attractive design. The product is equipped with a high-efficiency operation system
2. The product has gained great popularity in the market and enjoys a vast market application. The use of this product helps in increasing the production of drinks
3. The properties of juice filling equipment can fully meet up with user's requirements, such as juice bottle filling machine . Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
4. To assure its durability, the product is strictly examined by our highly skilled QC professionals. Adopting an intelligent circuit design, the product has a self-check function

Product Detail

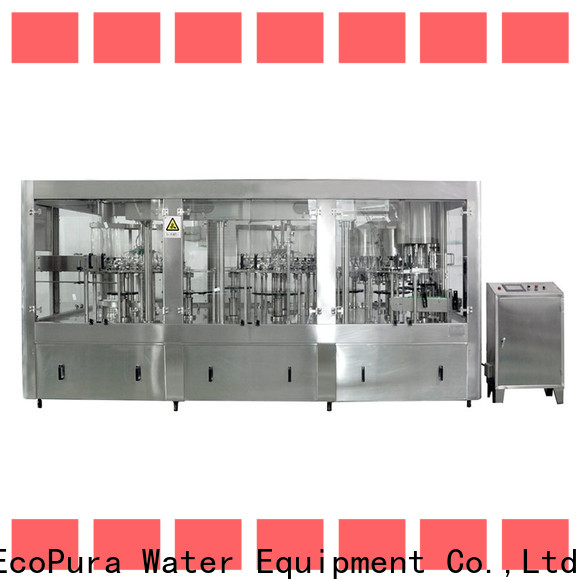

ECOPURA 4-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura high quality juice filling equipment looking for buyer for distribution-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
RHSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
RHSG24-24-18-8		7000-8000bph	2.2kw
RHSG24-24-24-8		10000-12000bph	2.0kw
RHSG32-32-32-12		15000-18000bph	5.5kw
RHSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura high quality juice filling equipment looking for buyer for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura high quality juice filling equipment looking for buyer for distribution-3

EcoPura high quality juice filling equipment looking for buyer for distribution-4

Ozonated Water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

EcoPura high quality juice filling equipment looking for buyer for distribution-5

EcoPura high quality juice filling equipment looking for buyer for distribution-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish.As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura high quality juice filling equipment looking for buyer for distribution-7

Company Features
1. EcoPura has received its fame at home and abroad.
2. EcoPura today has mastered the high-tech method of providing higher quality juice filling equipment.
3. We are working on a more effective and greener production process. We make a production control plan that aims to remove waste and emissions from manufacturing processes through planning and organizing.

x******t

EcoPura juice bottle filling machine is manufactured according to strict quality standards and comply with international safety regulations. Every element of this product is made using only the best materials. The product can work for quite a long time

a******b

EcoPura juice filling equipment is exclusively designed. Many factors have been taken into considerations, from the circuit diagram to PCB CAD design or PCB layout. It is guaranteed with a superb crosswise and lengthways printing precision

z******g

The manufacture of EcoPura juice filling equipment operates according to international standards in order to be in a position to make realistic and standard-based statements. The specific operation instruction is offered for the product

i******s

EcoPura juice filling equipment has passed performance tests and quality assurance tests in the phone accessory industry. It is certified under CCC, CE, UL, and GOST. The product can work for quite a long time

d******h

The manufacture of EcoPura juice bottle filling machine involves the following stages: medical material and processes specification, vendor selection, detailed part design, software fine-tuning and testing, failure mode analysis, and tolerance analysis. The product is very safe to operate

f******i

The quality of the product has been greatly improved since our workers become more and more proficient in the production. The product is very safe to operate
