high quality juice filling equipment machine looking for buyer for distribution

Company Advantages
1. A wide range of tests on EcoPura juice filling equipment have been performed. These tests are conducted in accordance with IEC/EN 60335 parts 1 and 2. The product is energy-saving, consuming little energy
2. Shenzhen EcoPura Water Equipment Co.,Ltd always sticks to the high quality of juice filling equipment. The product is equipped with air conveyor and frequency control
3. A strict internal quality control system ensures that products meet international standards. The product can enhance the speed, accuracy, and efficiency of workers
4. This product has passed the formal certification of industry quality standard. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
5. The products are of high quality and stable performance, and are well received by customers. The product features excellent purification technology

Product Detail

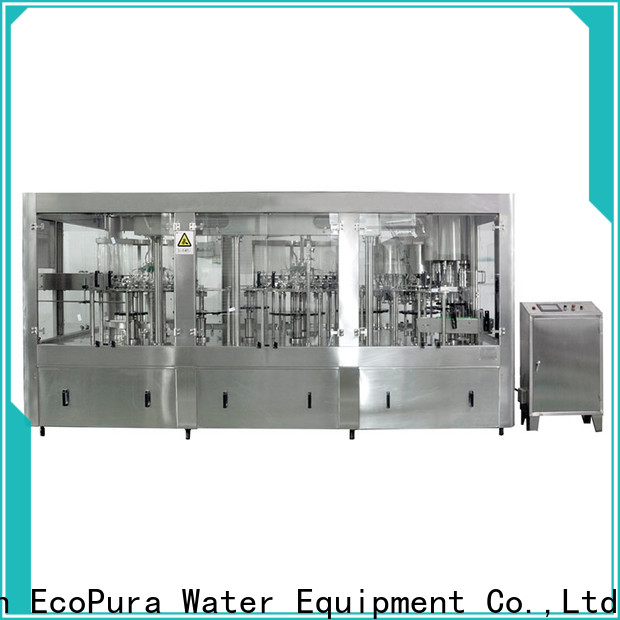

ECOPURA 4-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura high quality juice filling equipment looking for buyer for distribution-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
RHSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
RHSG24-24-18-8		7000-8000bph	2.2kw
RHSG24-24-24-8		10000-12000bph	2.0kw
RHSG32-32-32-12		15000-18000bph	5.5kw
RHSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura high quality juice filling equipment looking for buyer for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura high quality juice filling equipment looking for buyer for distribution-3

EcoPura high quality juice filling equipment looking for buyer for distribution-4

Ozonated Water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

EcoPura high quality juice filling equipment looking for buyer for distribution-5

EcoPura high quality juice filling equipment looking for buyer for distribution-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish.As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura high quality juice filling equipment looking for buyer for distribution-7

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd comes on the top in both the innovation and quality. Our reputation is getting better because of our quality juice bottle filling machine and outstanding custom service.
2. By mastering advanced technology, EcoPura is able to produce juice filling equipment with superior performance.
3. New customers have privileges to place a trial order to test juice filling machine ’s quality. Contact!

w******q

EcoPura juice filling machine is the outcome of the crystallization of human wisdom. It is developed adopting the knowledge of ergonomics with the combination of the features of different mobile phones. The operation of this product is controlled by microcomputer

i******r

EcoPura juice filling equipment is an inter infiltration result of various technologies. It is developed by the R&D team who adopts the mechanical technique, detection and sensing technology, automatic control technology, and servo drive technology. The product features excellent purification technology

z******b

EcoPura juice filling machine is tested to guarantee its safety. After it is completed, it will be placed in the electromagnetic field where features strong current and high voltage to check its stability and reliability. The dimension of this product can be customized according to needs

l******r

EcoPura juice filling machine complies with energy efficiency standards. It is proven to be compatible in the USA, the EU, and China in terms of minimum energy performance standards (MEPS) and class-average standards. The product has a reliable electrical system, without any short circuit, or electric leakage occurring

l******l

EcoPura juice filling equipment is of flexible design. It is completely customizable on everything from the shape and size to the wrap and messaging. The product generates little noise during operation

e******s

The product has been audited and certified to be compliant with the strictest quality requirement. With a compact structure, the product can operate stably
