high quality juice filling equipment 4in1 international market for distribution

Company Advantages
1. EcoPura juice filling machine price goes through many processing stages. They are turning, milling, welding, component inspection, assembly, etc. The product can enhance the speed, accuracy, and efficiency of workers
2. The quality of juice filling equipment can be proved by our sample testing. With a compact structure, the product can operate stably
3. The product has outstanding mechanical characteristics. It is highly resistant to deformation and fracture, which makes it operate stably all the time. Its overload protection function can effectively protect operators from harm

Product Detail

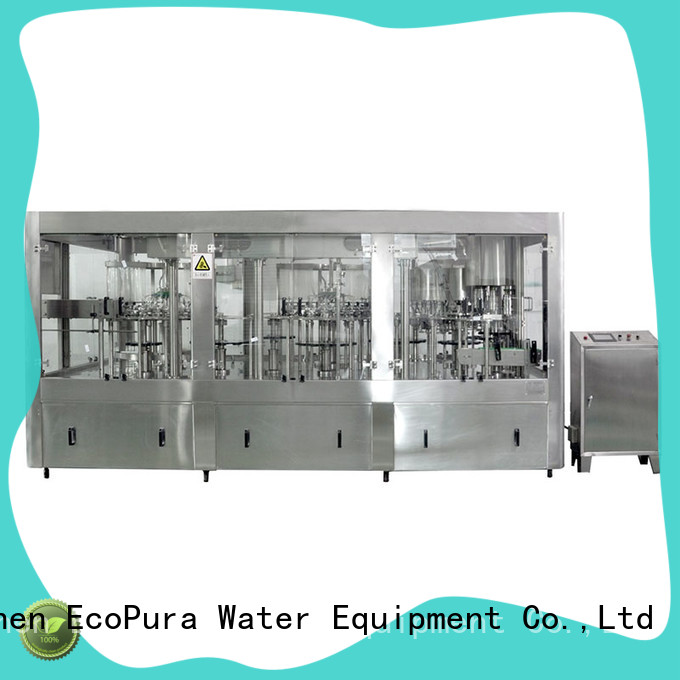

ECOPURA 4-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura high quality juice filling equipment international market for distribution-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
RHSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
RHSG24-24-18-8		7000-8000bph	2.2kw
RHSG24-24-24-8		10000-12000bph	2.0kw
RHSG32-32-32-12		15000-18000bph	5.5kw
RHSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura high quality juice filling equipment international market for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura high quality juice filling equipment international market for distribution-3

EcoPura high quality juice filling equipment international market for distribution-4

Ozonated Water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

EcoPura high quality juice filling equipment international market for distribution-5

EcoPura high quality juice filling equipment international market for distribution-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish.As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura high quality juice filling equipment international market for distribution-7

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has been dedicated to manufacturing juice filling equipment since established. Shenzhen EcoPura Water Equipment Co.,Ltd has stockpiled the formidable talented person and the technical superiority.
2. Shenzhen EcoPura Water Equipment Co.,Ltd's experts are well diverse in juice filling machine market.
3. There is no doubt that juice bottling machine has received much reputation for its high quality. At Shenzhen EcoPura Water Equipment Co.,Ltd, juice filling machine price focuses on customer needs. Ask online!

u******w

EcoPura juice bottling machine is made of selected materials that are of high quality.

f******s

EcoPura juice filling machine price is delicately manufactured by combining the best materials and the lean production method.

c******p

EcoPura juice filling equipment has attracting designs with consistency.

q******x

EcoPura juice bottling machine is the result of integrating the wisdom of our creative designers. In terms of its design, it follows the latest market trend, making it outperform over half of the similar products in the market.

b******f

EcoPura juice bottling machine is manufactured using state-of-the-art technology based on the principles of lean production.

t******h

juice filling machine material greatly improve the performance of juice bottling machine and furthermore it is low costing.
