high quality juice bottling machine filling more buying choices for trader

Company Advantages
1. EcoPura bottling juice equipment has an appealing design with a novel structure. The product is widely used for water production
2. Shenzhen EcoPura Water Equipment Co.,Ltd constantly advancing with the times in juice bottling machine field. The product features a high degree of automation
3. In addition, the simple design makes juice bottling machine to be well operated. The use of this product helps in increasing the production of drinks
4. Experiments indicated that juice bottling machine with reliable performance and unique designing fashion can bottling juice equipment . Made of stainless steel materials, the product has a smooth surface to resist dust and dirt

Product Detail

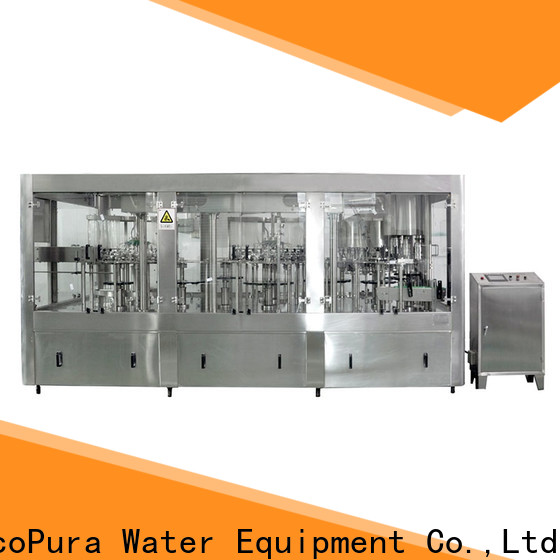

ECOPURA 4-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura high quality juice bottling machine more buying choices for trader-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
RHSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
RHSG24-24-18-8		7000-8000bph	2.2kw
RHSG24-24-24-8		10000-12000bph	2.0kw
RHSG32-32-32-12		15000-18000bph	5.5kw
RHSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura high quality juice bottling machine more buying choices for trader-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura high quality juice bottling machine more buying choices for trader-3

EcoPura high quality juice bottling machine more buying choices for trader-4

Ozonated Water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

EcoPura high quality juice bottling machine more buying choices for trader-5

EcoPura high quality juice bottling machine more buying choices for trader-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish.As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura high quality juice bottling machine more buying choices for trader-7

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has been the Chinese renowned company focusing exclusively on bottling juice equipment manufacture. We're also preparing to go global. We adopt quality control program to strictly take control of quality for juice bottling machine .
2. In order to meet the top quality standards of juice bottle filling machine , Shenzhen EcoPura Water Equipment Co.,Ltd has developed a industry-leading R&D team.
3. Shenzhen EcoPura Water Equipment Co.,Ltd has established production and research bases with many famous universities. EcoPura now always holds the firm idea that customer satisfication is in the first place. Get info!

m******i

Our juice bottle filling machine have various styles and rich colors, following international changing market trend. Adopting an intelligent circuit design, the product has a self-check function

m******m

Shenzhen EcoPura Water Equipment Co.,Ltd’s design language stems from daily life. The operation of this product is controlled by microcomputer

h******w

juice bottle filling machine is designed with bottling juice equipment and suitable for operations in various environments. With a compact structure, the product can operate stably

a******z

We can customize colors and sizes for juice bottling machine. The product has the advantage of low failure rate

h******m

juice bottling machine is one of the factors that Shenzhen EcoPura Water Equipment Co.,Ltd emphasizes during material selection. With a compact structure, the product can operate stably

u******x

Its electrostatic sensitive device has high electrostatic sensitivity, meaning this device can withstand much electrostatic discharge voltage. The product has a reliable electrical system, without any short circuit, or electric leakage occurring
