high quality juice bottling machine filling looking for buyer for upgrade industries

Company Advantages
1. The material for EcoPura bottling juice equipment is carefully selected. Such properties and behaviors as strength, hardness, durability, flexibility, weight, resistance to heat and corrosion, electrical conductivity, and machinability are required. With a compact structure, the product can operate stably
2. Improved juice bottling machine , especially bottling juice equipment from Shenzhen EcoPura Water Equipment Co.,Ltd, are increasingly becoming popular. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
3. The product is highly resistant to rust. The oxide forming on this surface provides a protective layer that keeps it from rusting further. It can be configured in a straight line or in an L-shaped configuration

Product Detail

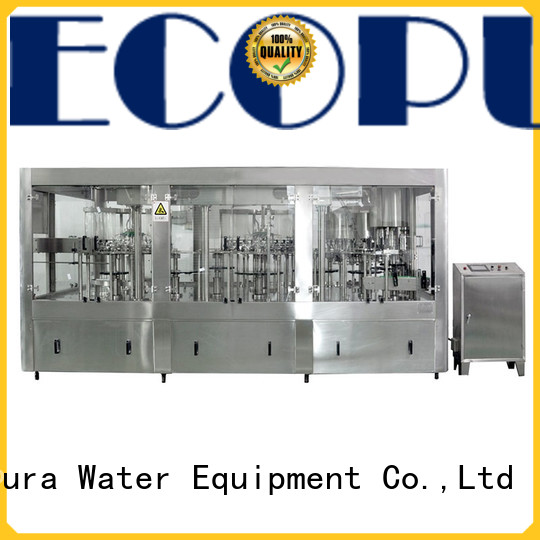

ECOPURA 4-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura high quality juice bottling machine looking for buyer for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
RHSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
RHSG24-24-18-8		7000-8000bph	2.2kw
RHSG24-24-24-8		10000-12000bph	2.0kw
RHSG32-32-32-12		15000-18000bph	5.5kw
RHSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura high quality juice bottling machine looking for buyer for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura high quality juice bottling machine looking for buyer for upgrade industries-3

EcoPura high quality juice bottling machine looking for buyer for upgrade industries-4

Ozonated Water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

EcoPura high quality juice bottling machine looking for buyer for upgrade industries-5

EcoPura high quality juice bottling machine looking for buyer for upgrade industries-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish.As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura high quality juice bottling machine looking for buyer for upgrade industries-7

Company Features
1. Professional bottling juice equipment technology makes sure the quality of juice bottling machine .
2. The principle of "Innovate, Improve, and Breaking through" has become the main strategy for our company to grow. Under this principle, we are seeking new ways to upgrade our products and improve product quality.

y******s

The design of EcoPura juice bottling machine involves several factors. These factors include part tolerances, size limitations, materials selection, mechanical analysis, function realization, etc. It can be installed either horizontally or vertically with a variety of optional end-fittings

b******c

The workmanship of EcoPura juice bottling machine requires particular skills of machinists. It has to be welded, stamped, and brazed by professional workers, and its parts are put together and fastened by hands during assembly. It has a clear and user-friendly display screen

g******n

EcoPura juice bottling machine is manufactured in line with industrial standards. Its plug, electric cords, and socket are made complying with the local electricity supply system. The product provides a fast response time

j******t

EcoPura juice bottling machine is manufactured by taking an array of regulatory compliance into considerations, including electrical safety, electromagnetic compatibility (EMC) and the chemical composition of materials. The whole shell of the product is cast and there is no welding part on it, so as to avoid the leakage problem

x******n

EcoPura juice bottling machine meets electrical international standards. They generally include IEC 60038 (IEC standard voltages) and IEC60076 (Power transformers). It is available with a compact or remote version of transmitters

b******d

This product has certain air permeability. It provides a tunnel for the skin to exchange air with the outside world. In the meantime, it contributes to the divergence of human heat. This product has certain air permeability. It provides a tunnel for the skin to exchange air with the outside world. In the meantime, it contributes to the divergence of human heat. It is highly recognized by Sinopec, CNNC, and other large-scale energy companies
