ISO9001 certified wine filling machine filling factory for distribution

Product Detail

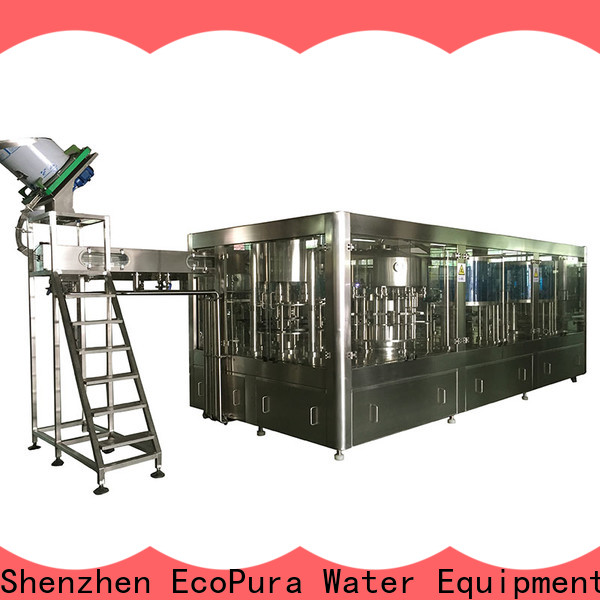

ECOPURA 3-in-1 Glass 0.3L-1.5L HSG-G series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

EcoPura filling wine filling machine factory for distribution-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3G	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-3000bph	1.5kw	SIEMENS
HSG16-12-6G		3000-4500bph	1.8kw
HSG24-16-6G		5000-6000bph	2.2kw
HSG24-18-8G		7000-8000bph	2.2kw
HSG24-24-8G		10000-12000bph	3.0kw
HSG32-32-12G		15000-18000bph	5.5kw
HSG38-38-14G		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura filling wine filling machine factory for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura filling wine filling machine factory for distribution-3

EcoPura filling wine filling machine factory for distribution-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The lift cylinder presses the bottle on to the filling valve where it is pre-evacuated several times. With non-carbonated beverages, the filling valve opens due to a movement of the control cylinder. With carbonated beverages, the bottle is pressurised and the valve opens as soon as the bottle and the ring bowl have the same pressure. At both of the filling processes, the liquid runs through a spreader along the bottle wall. The valve closes as soon as the bottle is entirely filled. The correction channel opens and the excessive fill quantity is displaced from the bottle to the end of the vent tube. With carbonated beverages, a snifting phase is performed in order to reduce the pressure in the bottle head space. Non- carbonated beverages can be removed from the filling valve right after filling is completed.

Aluminum Roll-On Capping Part

After they have been sorted according to their positions in the sorter, the caps are fed to the capper via an open chute. A towing shoe positions the caps, which are then directly picked up by the bottle. If a cap is missing, a safety plunger prevents contact between the rollers and the bottle neck finish. Depending on the cap type, a “fixed” or a deep-drawing plunger is used for press-on and shaping. The thread is rolled out via moveable arms, and if necessary, the tamper-evident band is flanged. The lateral pressure can be easily readjusted with adjusting screws.

EcoPura filling wine filling machine factory for distribution-5

EcoPura filling wine filling machine factory for distribution-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

r******f

Every part of EcoPura wine filter machine is exquisitely crafted to meet the quality standards required in the phone accessory industry, such as impact and wear resistance.

l******x

EcoPura wine filling machine is the outcome of sophisticated manufacturing processes. During the production stage, the nominal voltage, power source type, rated power, insulation, and water resistance grade have gone through repeated experiments and testing.

h******x

EcoPura wine filling machine is designed in a comprehensive way. Before production, it will be designed using CAD to create its front view, lateral view, and the anatomy view in the middle, hence, its whole structure is showed clearly.

d******u

EcoPura wine filling machine is developed after vast research on similar products. It is developed to embrace many distinctive and optimized advantages such as wider input voltage range, strong surge withstanding capacity, as well as excellent electromagnetic compatibility.

a******b

EcoPura wine filter machine comes with a mattress bag that is large enough to fully enclose the mattress to make sure it stays clean, dry and protected.

g******z

Shenzhen EcoPura Water Equipment Co.,Ltd By formulating correct and effective raw material procurement strategies and resource management and control measures in the production process, the economic benefits of the material procurement process and the resource utilization rate in the production process are maximized to ensure that the produced wine filling machine performance is better High, better price, higher comprehensive cost performance, saving more purchasing costs for customers who purchase our products.
