latest soft drink filling machine filling wholesale for upgrade industries

Enterprise Strength

EcoPura Water Treatment Equipment & Bottling Machine consistently adheres to the purpose to be sincere, true, loving and patient. We are dedicated to providing consumers with quality service. We exert ourselves to develop mutually beneficial and friendly partnerships with customers and distributors.

Product Details

EcoPura Water Treatment Equipment & Bottling Machine's bottle filling machine is processed based on the latest technology. It has excellent performances in the following details.EcoPura Water Treatment Equipment & Bottling Machine has professional production workshops and great production technology. bottle filling machine we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.

Company Advantages
1. The quality control of EcoPura soda filling machine price is carried out rigorously. It will be tested in terms of its timber moisture content, agglutination, painting, door face polishing, and so on.
2. The product is built to last. Thanks to its durable construction, it is able to withstand great abuse under harsh environments.
3. The product is energy saving. The design adopts the latest energy conservation technologies which significantly reduces energy consumption.
4. The product plays a critical role in various mechanical devices with moving parts, making it possible for the machine to run smooth with high efficiency.

Product Detail

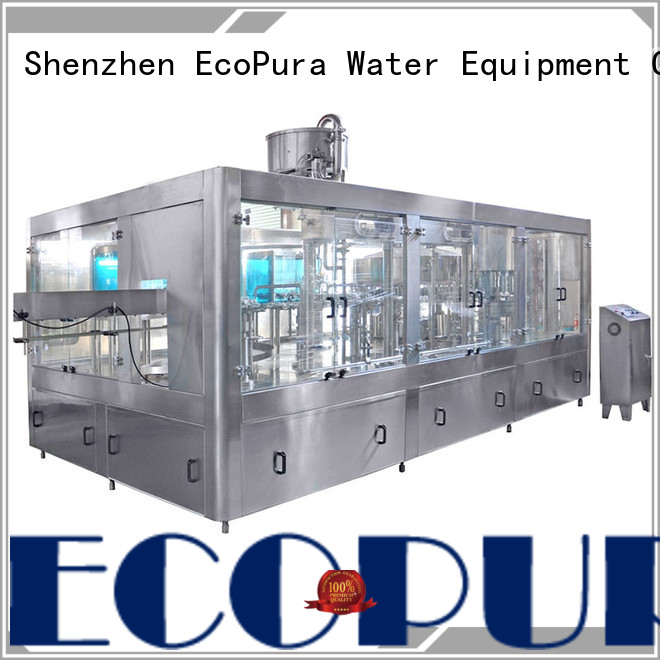

ECOPURA 4-in-1 PET 0.3L-1.5L DHSG-series monobloc equipped with isobaric filler nozzles designated for filling carbonated beverages such as Cola, beer, carbonated water and other liquids etc

EcoPura filling soft drink filling machine wholesale for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura filling soft drink filling machine wholesale for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316 Contactless filling SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura filling soft drink filling machine wholesale for upgrade industries-3

EcoPura filling soft drink filling machine wholesale for upgrade industries-4

Ozonated water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The PET container is first pressed on by the PET lifting unit and pressurised afterwards. Once the same pressure is in the ring bowl and the PET container, the filling valve will be opened and the filling process starts. The liquid is gently fed via a swirl insert into the bottle. Two different filling speeds guarantee optimum flow behaviour. A flow meter monitors the fed liquid quantity. Once the exact filling volume has been reached, the flow meter provides a signal and the valve closes electro pneumatically Maximum flexibility − Filling of non-carbonated and carbonated products on one system Maximum filling accuracy − Precise determination of fill quantity via inductive flow meter Gentle product treatment during filling − Low-foam and low-turbulence filling vias wirl insert in the valve Hygiene and stable filling processes − Separate gas channels for pressurization and snifting ECOPURA filling machines in their standard version are suitable for CIP and beverage mixer

EcoPura filling soft drink filling machine wholesale for upgrade industries-5

EcoPura filling soft drink filling machine wholesale for upgrade industries-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura filling soft drink filling machine wholesale for upgrade industries-7

Company Features
1. In soft drink filling machine business, Shenzhen EcoPura Water Equipment Co.,Ltd has significant advantages.
2. At present, most of the drink filling machine series produced by us are original products in China.
3. Shenzhen EcoPura Water Equipment Co.,Ltd will develop more environmentally friendly carbonated soft drinks filling machine . Inquire online! The long-term development plan of Shenzhen EcoPura Water Equipment Co.,Ltd includes soda filling machine price and soda filling machine . Inquire online! Shenzhen EcoPura Water Equipment Co.,Ltd aims to lead csd filling machine industry. Inquire online!

t******e

EcoPura soda filling machine price is under the real-time control of the R&D team. The team will carry out a routine sampling and analysis of the raw materials so as to acquire information necessary for the economic appraisal of ores and concentrates.

l******s

EcoPura drink filling machine is produced under advanced equipment. It will be processed by fastness to washing tester, steamer and washer, as well as vacuum cleaning equipment designed for textile.

i******u

EcoPura drink filling machine is under constant control in terms of health, safety, and environmental protection standards, as evidenced by the CE certificate issued.

s******z

The quality control of EcoPura soft drink filling machine is conducted rigorously. It is tested in terms of its air circulation, surface treatment, as well as the most important part, thermal dissipation performance.

e******l

All EcoPura carbonated soft drinks filling machine are manufactured in compliance with rubber and plastic industry standards and are tested for quality conformance in the laboratory.

h******o

The product features stable performance. The proportions of the various raw materials are carefully mixed together to achieve consistent properties.
