OEM ODM mineral water filling machine filling producer for distribution

Company Advantages
1. The design of EcoPura mineral water filling machine is professional. It is carried out by our designers who have taken many factors into considerations such as geometric stress of the parts, the flatness of section, and connection mode. Adopting an intelligent circuit design, the product has a self-check function
2. The product has great economic benefits and huge market potential, and has been widely used at home and abroad. The product is hygiene with no bacteria or mold built up
3. This machine has the desired motion. Various possible mechanisms are shortlisted and analyzed during the design phase, and the best mechanism is selected for its design. The product is energy-saving, consuming little energy

Product Detail

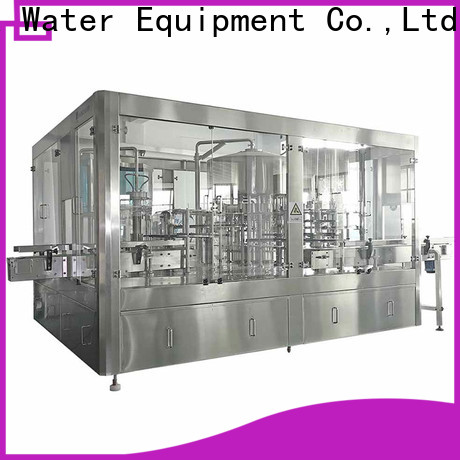

ECOPURA 3-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc

EcoPura filling mineral water filling machine producer for distribution-1

Product Parameter

Model	Bottle Spec	Capacity Cal@5L	Power	PLC & HMI
HSG10-10-5	3L-10L	1200-1500bph	2.2kw	SIEMENS
HSG12-12-5		1500-2000bph	3.0kw
HSG14-14-5		2000-2500bph	4.0kw
HSG16-16-5		2500-3000bph	5.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura filling mineral water filling machine producer for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura filling mineral water filling machine producer for distribution-3

EcoPura filling mineral water filling machine producer for distribution-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.
Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge.
Microbiological safety -Contact-free filling and optimized machine design
High filling accuracy -Use of flow meters and infinitely variable flow speeds
High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems
ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutchends the capping process. All main parts made of stainless steel AISI304 . Pick station with adjustable height Torque and spring force of the capping head are adjustable . Flushable cap retainer . Motorised height adjustment of the capper top part with bottle selection feature

EcoPura filling mineral water filling machine producer for distribution-5

EcoPura filling mineral water filling machine producer for distribution-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Now the advanced technology of mineral water filling machine production has been performed well.
2. Shenzhen EcoPura Water Equipment Co.,Ltd strives to satisfy all needs of clients which include pres-sales service, technical support and after-sales service. Check it!

h******x

Shenzhen EcoPura Water Equipment Co.,Ltd Constantly upgrade and renew production equipment and production lines, and explore technologies and processes to ensure that the overall quality of water filter plant machine price produced is more reliable.

d******i

Shenzhen EcoPura Water Equipment Co.,Ltd Standardized production is carried out in strict accordance with national standards, and the products are strictly tested with almost harsh quality control standards and inspection methods to ensure that the produced water filter plant machine price are qualified products with reliable quality.

b******b

The company has strong strength and strict management. It not only has a standardized production workshop, but also has established a perfect quality management system. From the selection of raw materials to the delivery of finished products, the quality is strictly controlled in every link to ensure the excellent quality of mineral water filling machine.

i******n

The mineral water filling machine we produce is fine in workmanship, reasonable in design, excellent in performance and stable in quality, and is a trustworthy high-quality product.

x******q

water filter plant machine price The design is scientific and reasonable, the materials are exquisite, the workmanship is fine, durable, and the service life is long. It is a product of high quality and extraordinary quality.

l******i

Many customers are satisfied with the high quality of this product. It has been proved that it has a superior waterproof performance
